0603 Ultraviolet SMD LED Components. 20 pcs.
Dioramo Scale Modeling # 10317
20 Pieces of Ultraviolet UV 395nm 0603 SMD Mini LED Light Components, packaged in Cut Reel Tape.
- These 0603 SMD LED Components are Tiny and Require Fine Soldering.
Perfect for Custom LED Lighting Creations in Tight Spaces, Small Scale Models, Miniatures, Dioramas, and DIY Hobby Projects.
Commonly used to Set the Mood or Create an Effect when Customizing Miniature Hobbies, Light Fixtures in Diorama Scenery and Buildings, Model Train Layouts, Toys, Plastic Kits, Diecast Cars, RC, Crafts, Dollhouses, Costumes, Toy Minis, Decorations, and more!
These LEDs require 3 Volts at a limited current of 20mA to operate.
Notes:
- Limiting current into an LED is important, and it is usually achieved by connecting a resistor to the LED. This 3V LED product does not include resistors and is intended for custom installations where the LED will be powered by a current-limiting source.
The Resistor Chart Image lists recommended resistors for this LED at various voltages to match your project's requirements.
- Ultraviolet LEDs emit lower-intensity light.

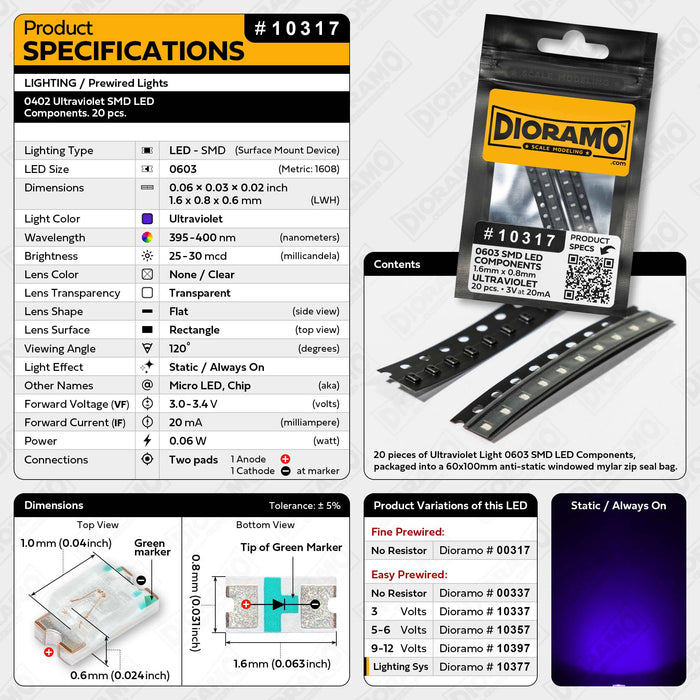

Specifications:
| Lighting Category: | Components Only |
| Lighting Type: | LED - SMD (surface mount device) |
| LED Size: | 0603 (metric: 1608) |
| LED Dimensions: |
0.06 in. × 0.03 in. × 0.02 in. 1.6 mm x 0.8 mm x 0.6 mm |
| Light Color: | Ultraviolet |
| Wavelength: | 395-400 nm (nanometers) |
| Brightness: | 25-30 mcd (millicandela) |
| Lens Color: |
None / Clear |
| Lens Transparency: | Transparent |
| Lens Shape: | Flat (side view) |
| Lens Surface: | Rectangle (top view) |
| Viewing Angle: | 120° (degrees) |
| Light Effect: | Static / Always On |
| Other Names: | Micro LED, Chip (aka) |
| Forward Voltage (VF): | 3.0-3.4 V (volts) |
| Forward Current (IF): | 20 mA (milliampere) |
| Power: | 0.06 W (watt) |
| Connections: |
Two Soldering Pads: Anode (+) Cathode (-) Marked with Green Line |
* Specifications are based on the LED component's optimal performance.
Light Colors available for the 0603 SMD LED Component:
