0603 Green SMD LED Components. 20 pcs.
Original price
$1.72
-
Original price
$1.72
Original price
$1.72
$1.72
-
$1.72
Current price
$1.72
Dioramo Scale Modeling
#10304

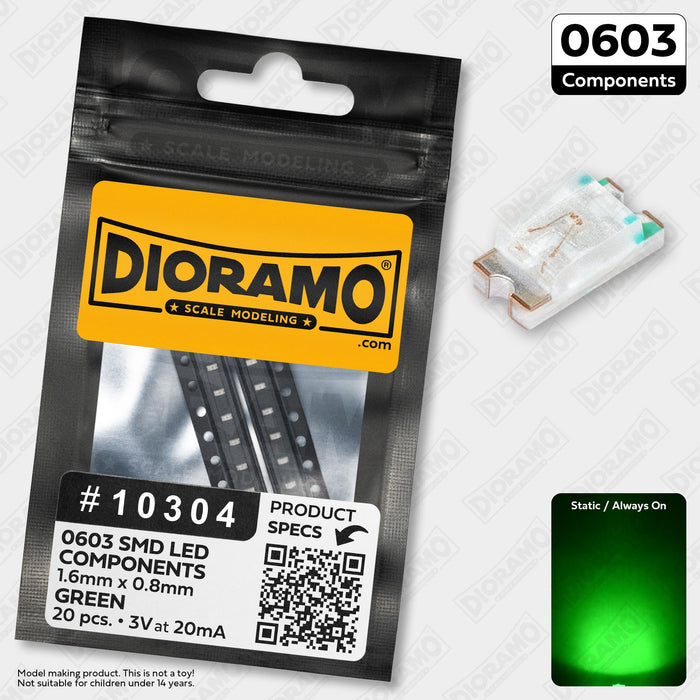

20 Pieces of Green 0603 SMD LED Light Components.
The Small and Bright 0603 SMD LED:
- Green Light Color 0603 SMD "Chip" LED Component.

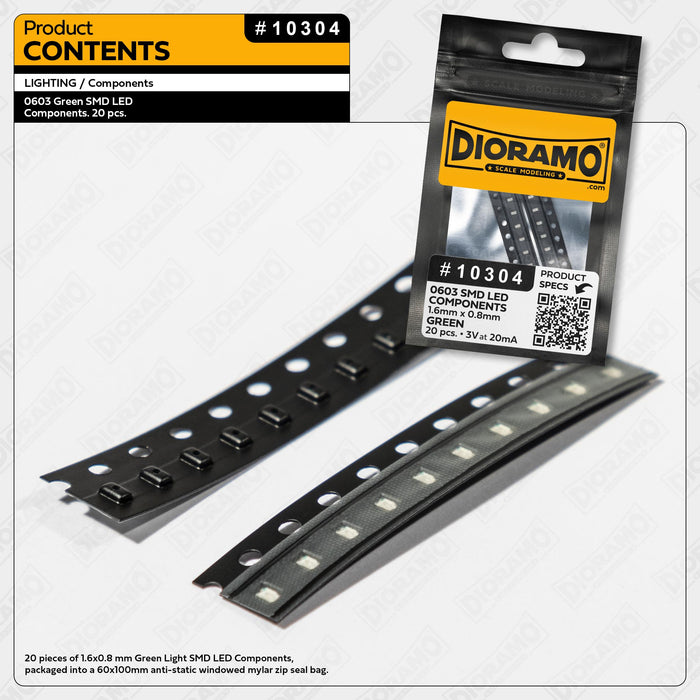

- Packaged in Cut Reel Tape.
- Reputable LED that is Robust and Cost-effective.
Perfect for Custom LED Lighting Creations in Tight Spaces, Small Scale Models, Miniatures, Dioramas, and DIY Hobby Projects. Set the Mood or Create an Effect when Customizing Miniature Hobbies, Light Fixtures in Diorama Scenery and Buildings, Model Train Layouts, Toys, Plastic Kits, Diecast Cars, RC, Crafts, Dollhouses, Costumes, Toy Minis, Decorations, and more!
Notes:
- 0603 SMD LED Components are very small and require specialized soldering. If you're uncertain, consider our prewired options for this component.
- These LEDs require 3 Volts at a limited current of 20mA to operate.
It is important to limit the current flowing into an LED, which is typically done by connecting a resistor in series with it. This particular 3V LED product does not come with resistors included and is designed for custom installations where the LED will be powered by a source that limits the current.

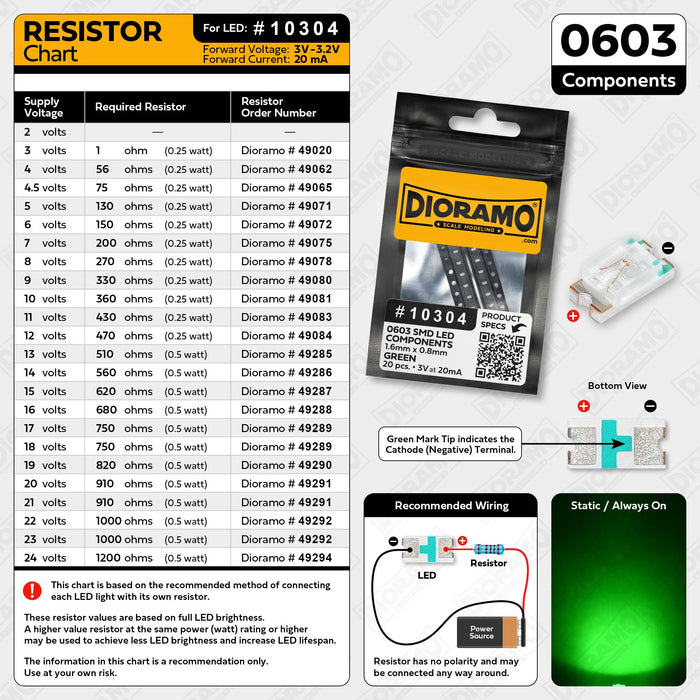

The Resistor Chart Image lists recommended resistors for this LED at various voltages to match your project's requirements.

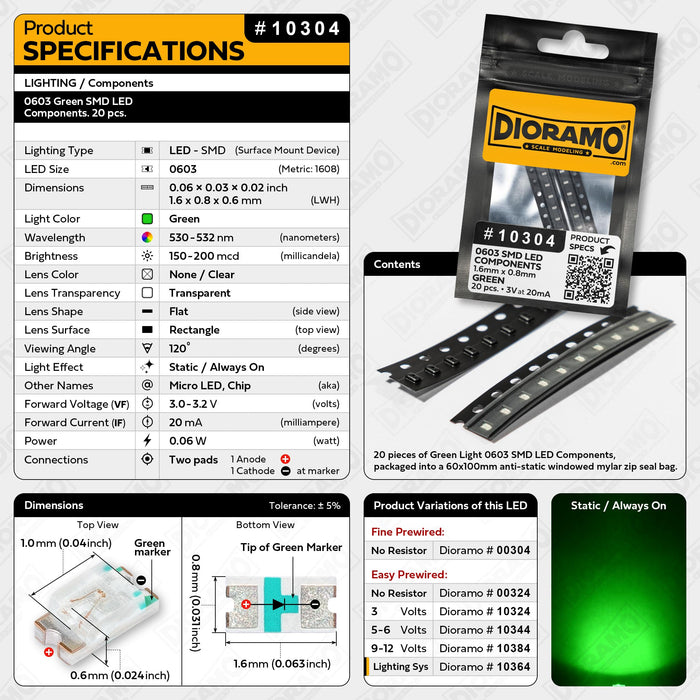

Specifications:
| Lighting Category: | Components Only |
| Lighting Type: | LED - SMD (surface mount device) |
| SMD Size: | 0603 (metric: 1608) |
| LED Dimensions: |
0.06 in. × 0.03 in. × 0.023 in. 1.6 mm x 0.8 mm x 0.7 mm |
| Light Color: | Green |
| Wavelength: |
530-532 nm (nanometers) |
| Brightness: | 150-200 mcd (millicandela) |
| Lens Color: |
None / Clear |
| Lens Transparency: | Transparent |
| Lens Shape: | Flat (side view) |
| Lens Surface: | Rectangle (top view) |
| Viewing Angle: | 120° (degrees) |
| Light Effect: | Static / Always On |
| Other Names: | Micro LED, Chip (aka) |
| Forward Voltage (VF): | 3.0-3.2 V (volts) |
| Forward Current (IF): | 20 mA (milliampere) |
| Power: | 0.06 W (watt) |
| Connections: |
Two Soldering Pads: Anode (+) Cathode (-) Marked with Green Line |
* Specifications are based on the LED component's optimal performance.
Light Colors available for the 0603 SMD LED Component:
