0603 Cool-White SMD LED Components. 20 pcs.
Original price
$1.62
-
Original price
$1.62
Original price
$1.62
$1.62
-
$1.62
Current price
$1.62
Dioramo Scale Modeling # 10302
20 Pieces of Cool / Cold White (7000-9000 K) 0603 SMD Mini LED Light Components, packaged in Cut Reel Tape.
- These 0603 SMD LED Components are Tiny and Require Fine Soldering.
Perfect for Custom LED Lighting Creations in Tight Spaces, Small Scale Models, Miniatures, Dioramas, and DIY Hobby Projects.
Commonly used to Set the Mood or Create an Effect when Customizing Miniature Hobbies, Light Fixtures in Diorama Scenery and Buildings, Model Train Layouts, Toys, Plastic Kits, Diecast Cars, RC, Crafts, Dollhouses, Costumes, Toy Minis, Decorations, and more!
These LEDs require 3 Volts at a limited current of 20mA to operate.
Note:
- Limiting current into an LED is important, and it is usually achieved by connecting a resistor to the LED. This 3V LED product does not include resistors and is intended for custom installations where the LED will be powered by a current-limiting source.
The Resistor Chart Image lists recommended resistors for this LED at various voltages to match your project's requirements.

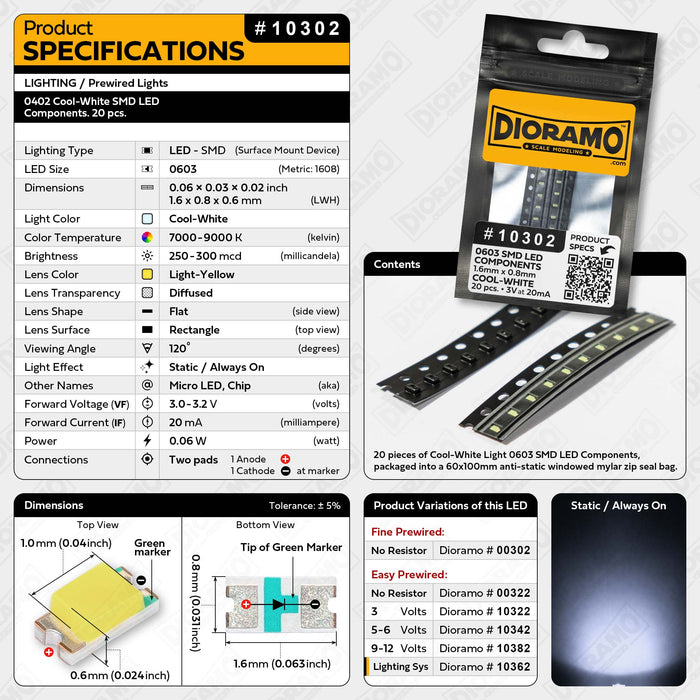

Specifications:
| Lighting Category: | Components |
| Lighting Type: | LED - SMD (Surface Mount Device) |
| SMD Size: | 0603 (Metric: 1608) |
| Dimensions: | 0.06 in. × 0.03 in. × 0.023 in. (LWH) 1.6 mm x 0.8 mm x 0.58 mm (LWH) |
| Light Color: | Cool-White |
| Color Temperature: |
7000-9000 K |
| Brightness: | 250-300 mcd |
| Lens Color: |
Yellow |
| Lens Transparency: | Diffused |
| Lens Shape: | Rectangle |
| Lens Surface: | Flat |
| Viewing Angle: | 120 degrees |
| Light Effect: | Static / Always On |
| Forward Voltage (VF): | 3.0-3.2 V |
| Forward Current (IF): | 20 mA |
| Power: | 0.06 W |
| Connections: |
Two Soldering Pads: Anode (+) Flat Side of Green Marking Cathode (-) Pointy Side of Green Marking |
Other light colors available for the 0603 SMD LED component:
