Micro Light Orange. 0402 LED Prewired for Lighting System. 2 pcs.

Original price $11.93 - Original price $11.93
Original price
$11.93
$11.93 - $11.93
Current price $11.93

Dioramo Scale Modeling

#10267

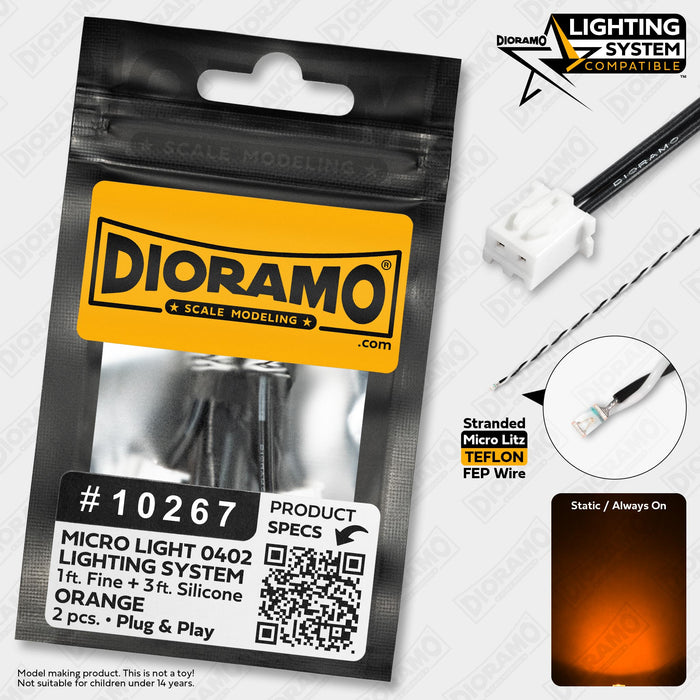

2 Pieces of Orange 0402 Micro Lights, Prewired and Compatible with the Dioramo Lighting System.

The Smallest Light of them all:

  • A Tiny Orange Light Color 0402 SMD LED Component (#10207).

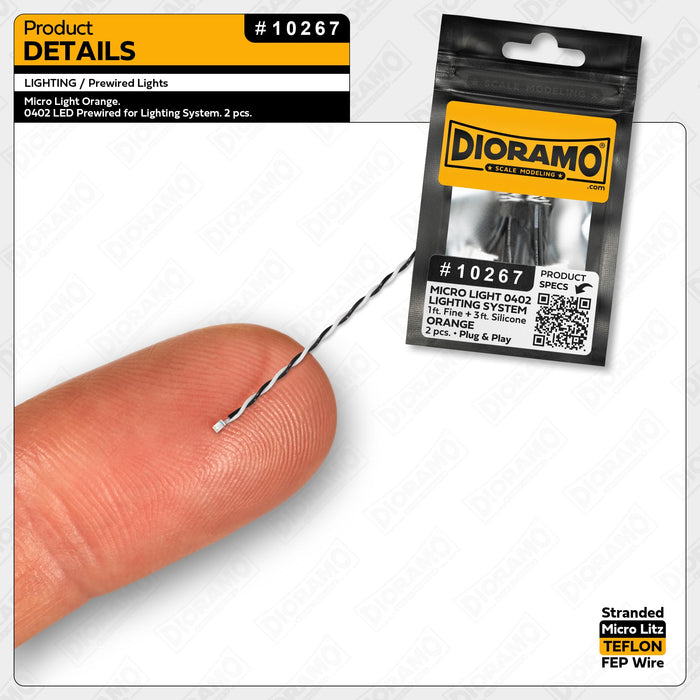

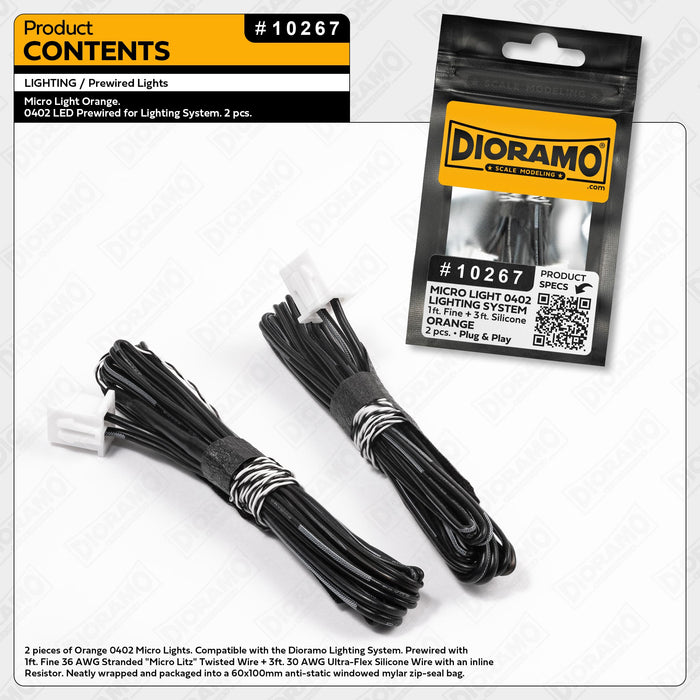

  • Soldered and Wired with a current-limiting Resistor using 1-foot of our Ultra-Fine 36 AWG Stranded Micro Litz Teflon FEP Twisted Wires (Black #36061 & White #36062) followed by an additional 3 feet of our Premium Ultra-Flexible Black 30 AWG Soft Silicone 2P Ribbon Flat Cable (#32001).
  • Ending with a JST-XH2 Connector Plug.



Perfect for Quick and Easy Plug & Play Mini LED Lighting Installations in Hobbies, Diorama Scenery, Model Train Layouts, DIY Projects, Crafts, Architectural Displays, Toys, Diecast Cars, RC, Dollhouses, Miniature Light Fixtures, Plastic Kits, Legos, Toy Minis, Costumes, 3D Prints, Christmas Village, Holiday Decorations, and more!



Note:

  1. This Plug & Play LED Light is Compatible with the Dioramo Lighting System, and has a Fail-Safe design. You can't cause harm by accidentally connecting it the wrong way. If the plug fits into a connector, then it may be connected there.

Embracing Modularity

  • The Dioramo Lighting System is Never Obsolete.
  • Only get the parts you want, to build exactly what you need.
  • Grow your Lighting System as your project expands.

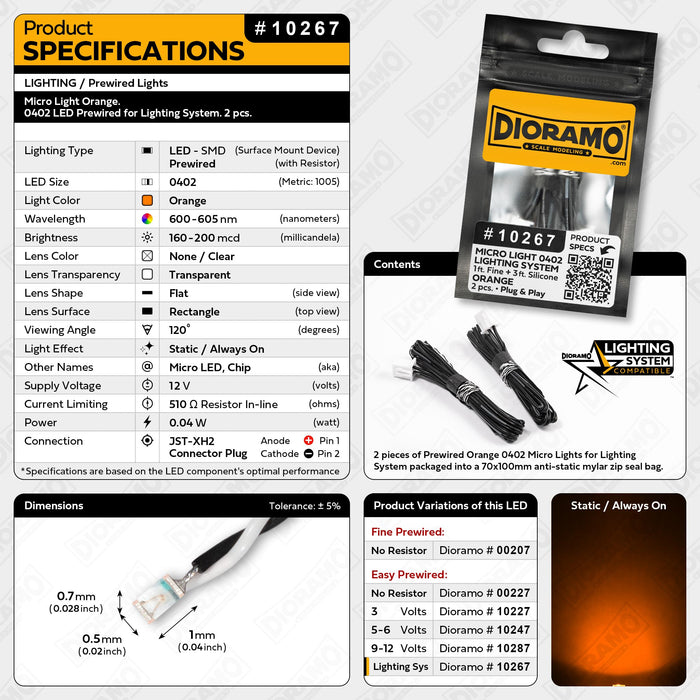

Specifications:

Lighting Category: Prewired for Lighting System
Lighting Type: LED - SMD (surface mount device)
LED Size: 0402 (metric: 1005)

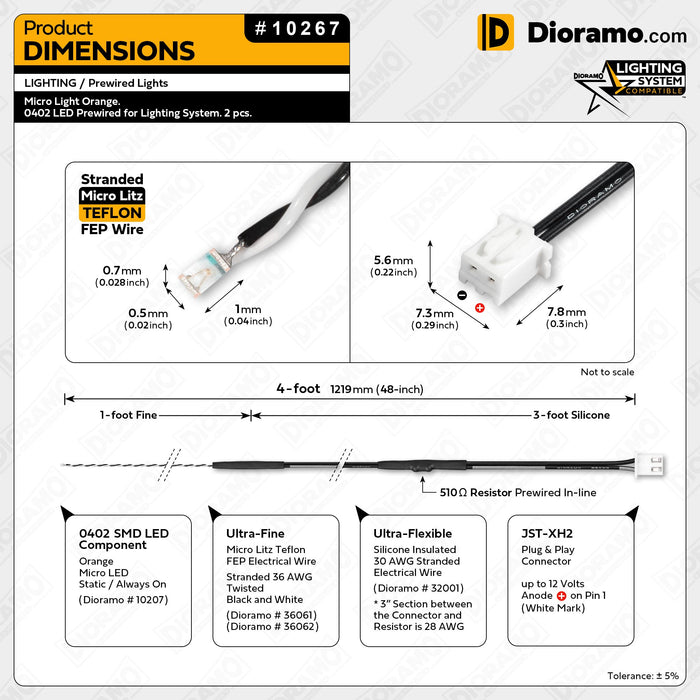

LED Dimensions: 0.04 in. × 0.02 in. × 0.028 in.
1.0 mm x 0.5 mm x 0.7 mm
Light Color: Orange
Wavelength:
600-605 nm (nanometers)
Brightness: 160-200 mcd (millicandela)
Lens Color:
None / Clear
Lens Transparency: Transparent
Lens Shape: Flat (side view)
Lens Surface: Rectangle (top view)
Viewing Angle: 120° (degrees)
Light Effect: Static / Always On
Other Names: Micro LED, Chip (aka)
Supply Voltage: 12 V (volts)
Current Limiting: 510 R (ohms) Resistor Prewired In-line
Power: 0.04 W (watt)
Connection: JST-XH2 Connector Plug

* Specifications are based on the LED component's optimal performance.



Product Variations using this Orange 0402 SMD LED Component:

#10207 - Components Only
#00207 - Fine Prewired (No Resistor Added)
#00227 - Easy Prewired (No Resistor Added)
#10227 - Easy Prewired for 3 Volts
#10247 - Easy Prewired for 5-6 Volts
#10287 - Easy Prewired for 9-12 Volts
#10267 - Prewired for Dioramo's Plug & Play Lighting System



Light Colors available for the Micro Light:



All Types - Dioramo Lighting System Compatible Products





Important:

The Dioramo Lighting System is designed to be both an Easy-Peasy Plug-and-Play Solution and a Customizable System for DIY Builders. Our DIY Adapters and Cables allow for both approaches.

DIY Connections, however, are done at your own risk. Faulty DIY connections resulting in a short circuit may damage the electronics.
