Hub for the Dioramo Lighting System
10-Port Powered Light Hub with Expansion and Switch Ports, Compatible with our Easy-Peasy Plug & Play Lighting System.
- This Hub works with any Dioramo Lighting System Compatible Light, Switch, Power Supply, and Cables.

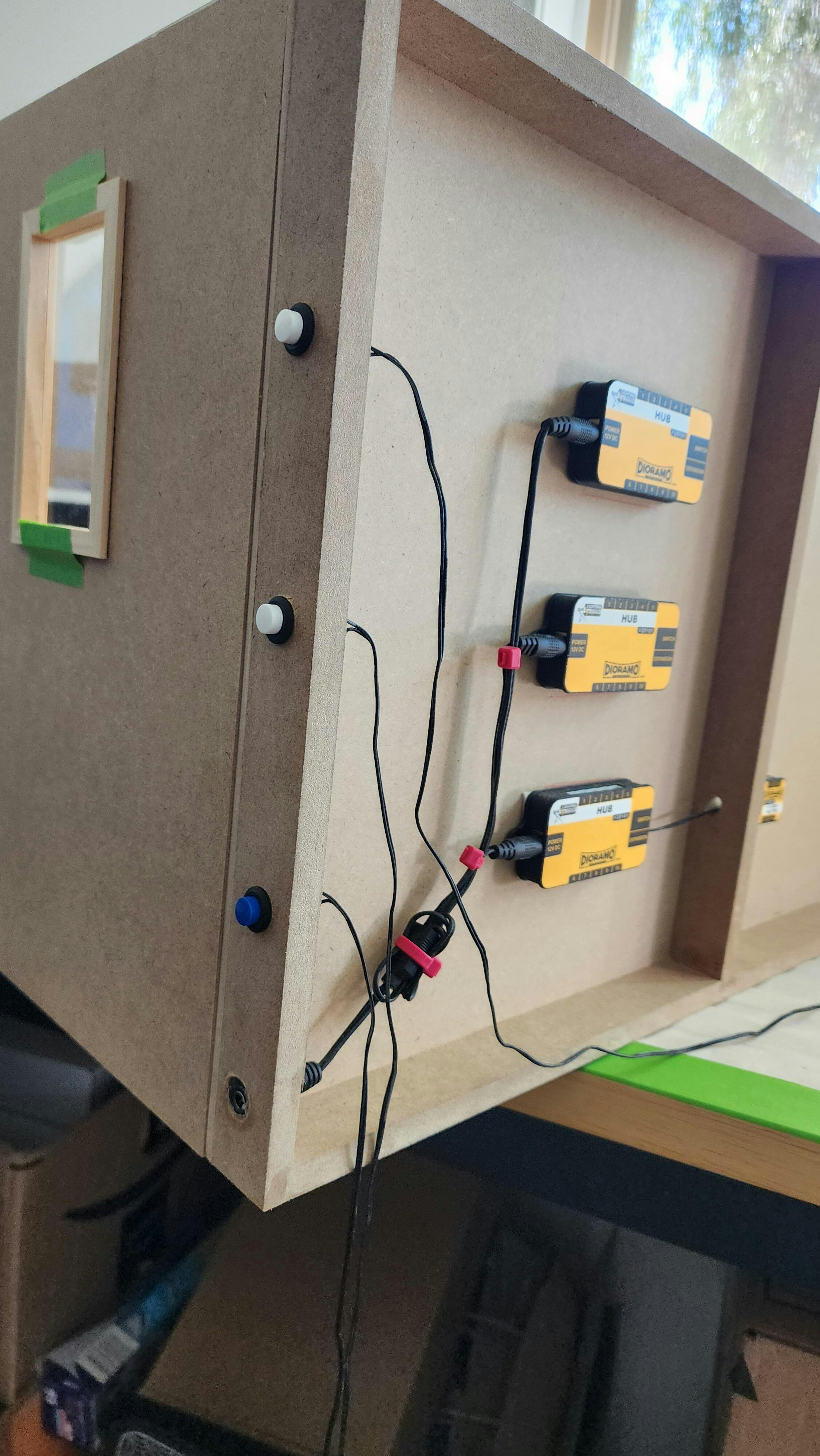

- Daisy-chain Hubs together using Expansion Cables to increase available Light Ports - up to 150 Lights!
- The Dioramo Lighting System has a Fail-Safe design. You can't cause harm by accidentally connecting parts the wrong way. If the plug fits into a connector, then it may be connected there.
- Includes Mounting Screws (#55330), and a JST-XH Connector Unplug Tool (#50101), to safely and easily disconnect Lights. An optional Die Cut 3M VHB Double-sided Adhesive Pad for screwless mounting is also available (#55201).
Perfect for Quick and Easy Lighting your Hobbies, Diorama Scenery, Model Train Layouts, DIY Projects, Crafts, Architectural Displays, Toys, Diecast Cars, RC, Dollhouses, Miniature Light Fixtures, Plastic Kits, Legos, Toy Minis, Costumes, 3D Prints, Christmas Village, Holiday Decorations, and more!
Notes:
- The Switch Port turns ON-OFF all the Lights plugged into the Light Ports; it does not affect the Expansion Port. The Expansion Port passes power through to other connected (daisy-chained) modules.
- An unlimited number of modules (Hubs, Dimmers, Blinkers, etc.) may be connected to / daisy-chained from the Hub's Expansion Port, as long as the Maximum Device Current Rating (150 Lights / 3000mA) through any connected module is not exceeded.
- The "Product Specifications" and "Lighting System Catalog" PDFs offer additional system and technical information.
Embracing Modularity
- The Dioramo Lighting System is Never Obsolete.
- Only get the parts you want, to build exactly what you need.
- Grow your Lighting System as your project expands.
Specifications:
| Dimensions: (incl. Mounting Wings) |
3.79 in. × 1.6 in. × 0.55 in. 96.35 mm x 40.5 mm x 14.0 mm |
| Operating Voltage: | 5-15 V (volts) |
| Maximum Device Current: | 3000 mA (milliampere), or 150 Dioramo Lighting System Compatible Lights |
| Power Port: | DC Barrell Connector. Size: 5.5mm x 2.1mm (Anode (+) on the inside pin) |
| Light Ports: | JST XH-A2 Connectors (Anodes (+) on Pin 1) |
| Switch Port: | JST XH-A3 Connector (See Product Specifications PDF for technical info) |
This Hub is included in the following Sets:
Dioramo Lighting System - Starter Set
Dioramo Lighting System - PRO Set
All Types - Dioramo Lighting System Compatible Products
Important:
The Dioramo Lighting System is designed to be both an Easy-Peasy Plug-and-Play Solution and a Customizable System for DIY Builders. Our DIY Adapters and Cables allow for both approaches.
DIY Connections, however, are done at your own risk. Faulty DIY connections resulting in a short circuit may damage the module's electronics.
