0402 Golden-White SMD LED Components. 20 pcs.
Dioramo Scale Modeling
20 Pieces of Golden-White 0402 SMD LED Light Components.
The Smallest Light of them all:
- Golden White (1600 to 2200 K) Light Color 0402 SMD "Chip" LED Component.
- Packaged in Cut Reel Tape.
- Reputable LED that is Robust and Cost-effective.
Perfect for Custom LED Lighting Creations in Tight Spaces, Small Scale Models, Miniatures, Dioramas, and DIY Hobby Projects. Set the Mood or Create an Effect when Customizing Miniature Hobbies, Light Fixtures in Diorama Scenery and Buildings, Model Train Layouts, Toys, Plastic Kits, Diecast Cars, RC, Crafts, Dollhouses, Costumes, Toy Minis, Decorations, and more!
Notes:
- 0402 SMD LED Components are very small and require specialized soldering. If you're uncertain, consider our prewired options for this component.
- These LEDs require 3 Volts at a limited current of 20mA to operate.
It is important to limit the current flowing into an LED, which is typically done by connecting a resistor in series with it. This particular 3V LED product does not come with resistors included and is designed for custom installations where the LED will be powered by a source that limits the current.

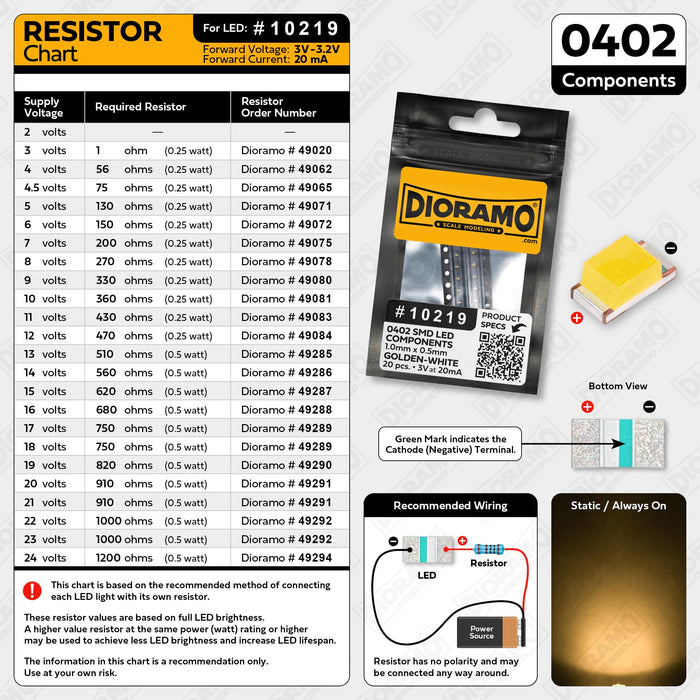

The Resistor Chart Image lists recommended resistors for this LED at various voltages to match your project's requirements.

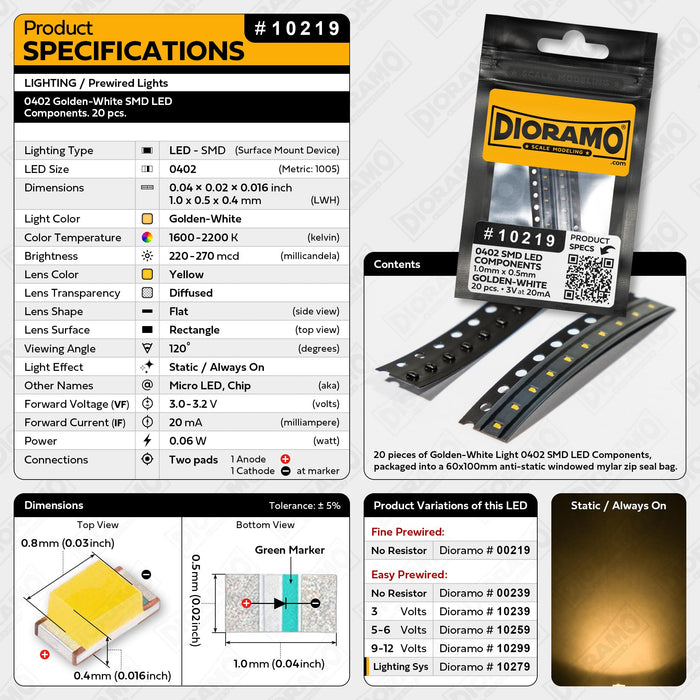

Specifications:
| Lighting Category: | Components Only |
| Lighting Type: | LED - SMD (surface mount device) |
| SMD Size: | 0402 (metric: 1005) |
| Dimensions: |
0.04 in. × 0.02 in. × 0.016 in. 1.0 mm x 0.5 mm x 0.4 mm |
| Light Color: | Golden-White |
| Color Temperature: | 1600-2200 K (kelvin) |
| Brightness: | 220-270 mcd (millicandela) |
| Lens Color: |
Yellow |
| Lens Transparency: | Diffused |
| Lens Shape: | Flat (side view) |
| Lens Surface: | Rectangle (top view) |
| Viewing Angle: | 120° (degrees) |
| Light Effect: | Static / Always On |
| Other Names: | Micro LED, Chip (aka) |
| Forward Voltage (VF): | 3.0-3.2 V (volts) |
| Forward Current (IF): | 20 mA (milliampere) |
| Power: | 0.06 W (watt) |
| Connections: |
Two Soldering Pads: Anode (+) Cathode (-) Marked with Green Line |
* Specifications are based on the LED component's optimal performance.
Product Variations using this Golden-White 0402 SMD LED Component:
#10219 - Components Only
#00219 - Fine Prewired (No Resistor Added)
#00239 - Easy Prewired (No Resistor Added)
#10239 - Easy Prewired for 3 Volts
#10259 - Easy Prewired for 5-6 Volts
#10299 - Easy Prewired for 9-12 Volts
#10279 - Prewired for Dioramo's Plug & Play Lighting System
