0402 Yellow-Green SMD LED Components. 20 pcs.
Dioramo Scale Modeling # 10208

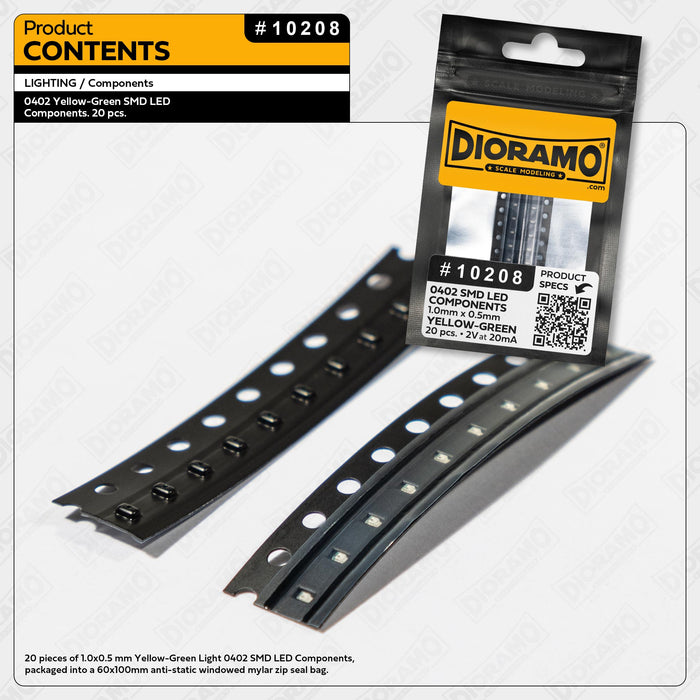

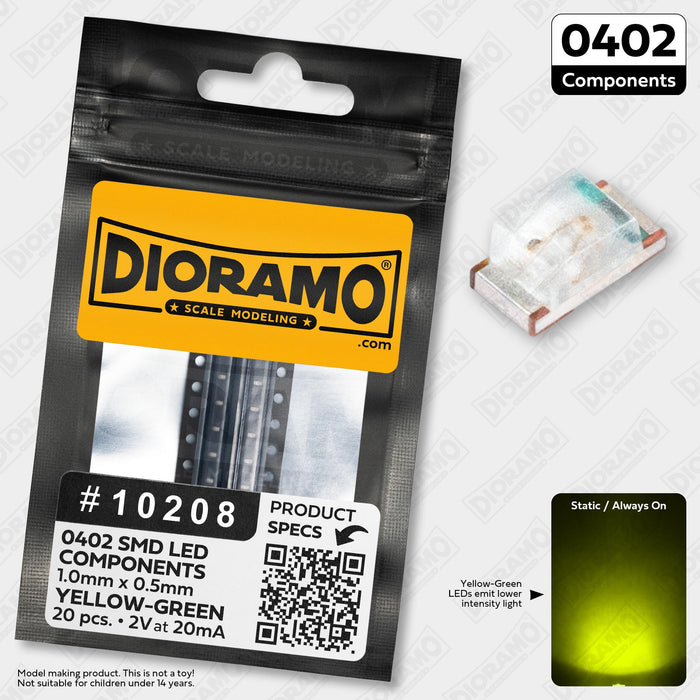

20 Pieces of Yellow Green / Chartreuse 0402 SMD Mini LED Light Components, packaged in Cut Reel Tape.
- These 0402 SMD LED Components are Tiny and Require Fine Soldering.
Perfect for Custom LED Lighting Creations in Tight Spaces, Small Scale Models, Miniatures, Dioramas, and DIY Hobby Projects.
Commonly used to Set the Mood or Create an Effect when Customizing Miniature Hobbies, Light Fixtures in Diorama Scenery and Buildings, Model Train Layouts, Toys, Plastic Kits, Diecast Cars, RC, Crafts, Dollhouses, Costumes, Toy Minis, Decorations, and more!
These LEDs require 2 Volts at a limited current of 20mA to operate.
Notes:
- Limiting current into an LED is important, and it is usually achieved by connecting a resistor to the LED. This 2V LED product does not include resistors and is intended for custom installations where the LED will be powered by a current-limiting source.

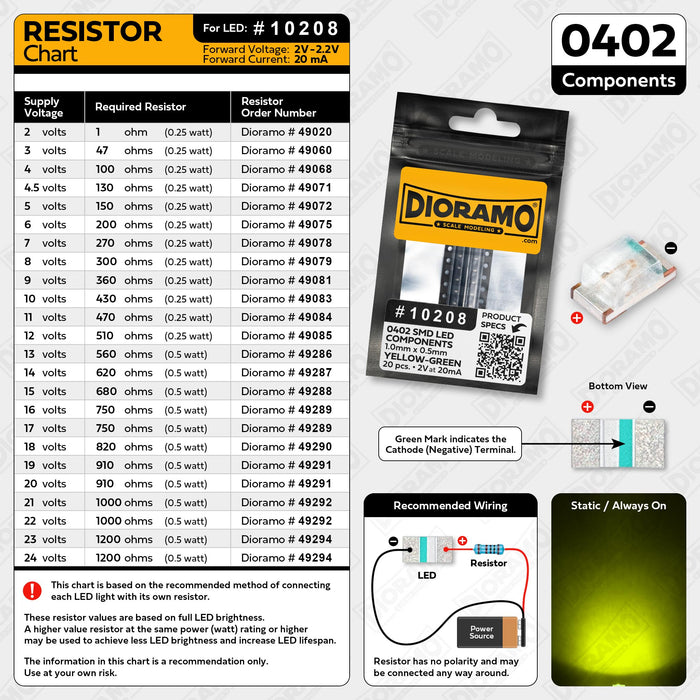

The Resistor Chart Image lists recommended resistors for this LED at various voltages to match your project's requirements.
- Yellow-Green LEDs emit lower-intensity light.

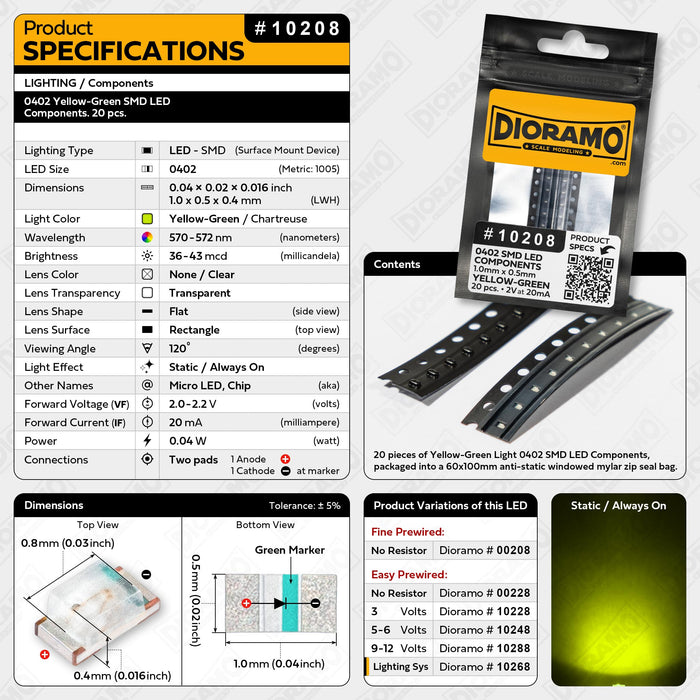

Specifications:
Lighting Category: | Components Only |
Lighting Type: | LED - SMD (surface mount device) |
LED Size: | 0402 (metric: 1005) |
LED Dimensions: |
0.04 in. × 0.02 in. × 0.017 in. 1.0 mm x 0.5 mm x 0.45 mm |
Light Color: | Yellow-Green / Chartreuse |
Wavelength: |
570-572 nm (nanometers) |
Brightness: | 36-43 mcd (millicandela) |
Lens Color: |
None / Clear |
Lens Transparency: | Transparent |
Lens Shape: | Flat (side view) |
Lens Surface: | Rectangle (top view) |
Viewing Angle: | 120° (degrees) |
Light Effect: | Static / Always On |
Other Names: | Micro LED, Chip (aka) |
Forward Voltage (VF): | 2.0-2.2 V (volts) |
Forward Current (IF): | 20 mA (milliampere) |
Power: | 0.04 W (watt) |
Connections: |
Two Soldering Pads: Anode (+) Cathode (-) Marked with Green Line |
* Specifications are based on the LED component's optimal performance.
Product Variations using this Yellow-Green 0402 SMD LED Component:
#10208 - Components Only
#00208 - Fine Prewired (No Resistor Added)
#00228 - Easy Prewired (No Resistor Added)
#10228 - Easy Prewired for 3 Volts
#10248 - Easy Prewired for 5-6 Volts
#10288 - Easy Prewired for 9-12 Volts
#10268 - Prewired for Dioramo's Plug & Play Lighting System
