5mm Red Flashing LED Components. 1.5 Hz. Clear Lens. Round. 10 pcs.
Dioramo Scale Modeling
10 Pieces of Red 5mm DIP LED Light Components with a built-in Blinking / Flashing Effect.
A Flashing Red LED, commonly used to mimic Law Enforcement, Fire Truck, EMT, etc. in Hobbies.
- Red Light Color Flashing DIP LED Component.
- 5mm Round, Transparent Clear Lens.
- Reputable LED that is Robust, Cost-effective, and Easy to Solder.
Mixing Different Red Light Color Components also result in out-of-sync Blinking rates, which allows for Customizing unique Scaled Flashing FX in Hobby Models, Dioramas, RC Cars, Diecast, Fire Engines, Toys, etc.
Notes:
- These LEDs require 2 Volts at a limited current of 20mA to operate.
It is important to limit the current flowing into an LED, which is typically done by connecting a resistor in series with it. This particular 3V LED product does not come with resistors included and is designed for custom installations where the LED will be powered by a source that limits the current.
The Resistor Chart Image lists recommended resistors for this LED at various voltages to match your project's requirements. - Flashing / Blinking LEDs can not be dimmed. Starving the internal chip of sufficient power may have adverse effects.
- These LEDs Flash / Blink at a rate of 1.5 Hertz, which is 90 cycles per minute.

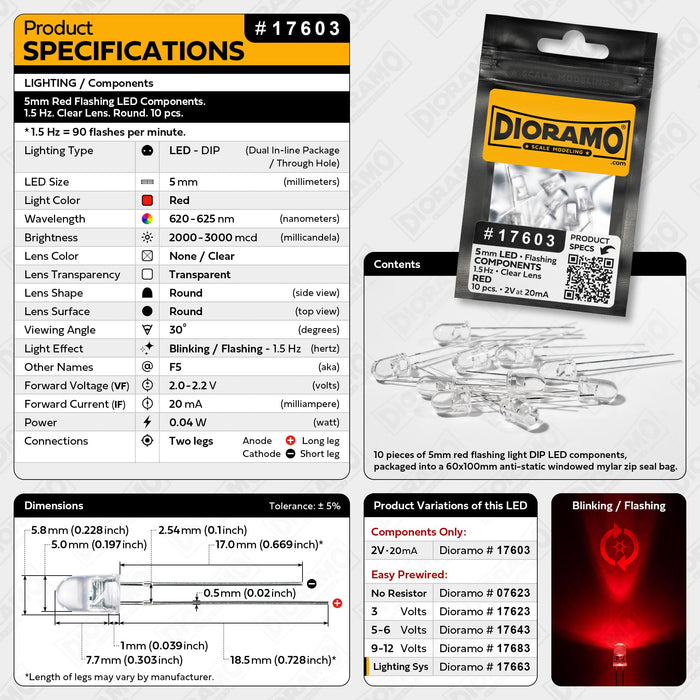

Specifications:
| Lighting Category: | Components Only |
| Lighting Type: | LED - DIP (dual In-line package / through hole) |
| LED Size: | 5 mm (millimeters) |
| Light Color: | Red |
| Wavelength: | 620-625 nm (nanometers) |
| Brightness: | 2000-3000 mcd (millicandela) |
| Lens Color: |
None / Clear |
| Lens Transparency: | Transparent |
| Lens Shape: | Round (side view) |
| Lens Surface: | Round (top view) |
| Viewing Angle: | 30° (degrees) |
| Light Effect: | Blinking / Flashing 1.5 Hz (hertz) |
| Other Names: | Light Emitting Diode, F5 (aka) |
| Forward Voltage (VF): | 2.0-2.2 V (volts) |
| Forward Current (IF): | 20 mA (milliampere) |
| Power: | 0.04 W (watt) |
| Connections: | Two Legs: Anode (+) Long Leg Cathode (-) Short Leg |
* Specifications are based on the LED component's optimal performance.
Product Variations using this Red 5mm Round, Flashing LED Component:
#17603 - Components Only
#07623 - Easy Prewired (No Resistor Added)
#17623 - Easy Prewired for 3 Volts
#17643 - Easy Prewired for 5-6 Volts
#17683 - Easy Prewired for 9-12 Volts
#17663 - Prewired for Dioramo's Plug & Play Lighting System
All Types - 5mm DIP LED Components
