5mm Cool-White LED Components. Diffused White Lens. Round. 20 pcs.
Dioramo Scale Modeling

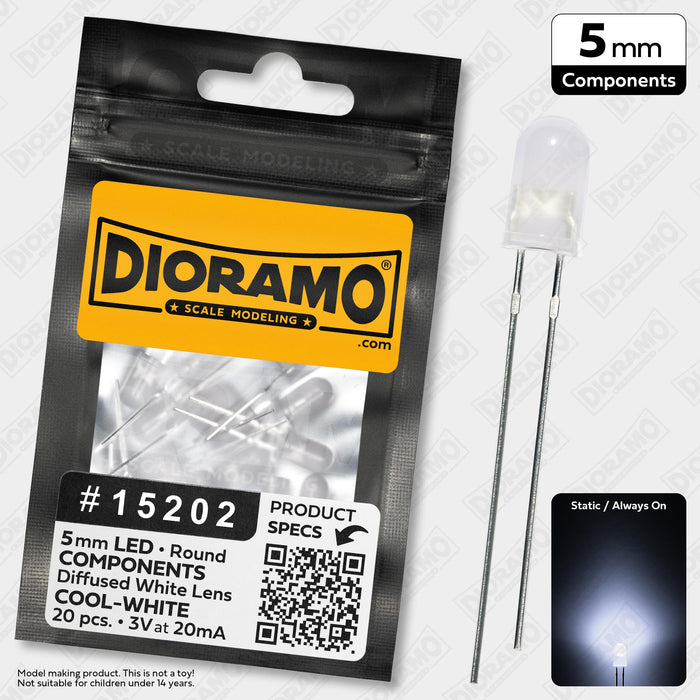

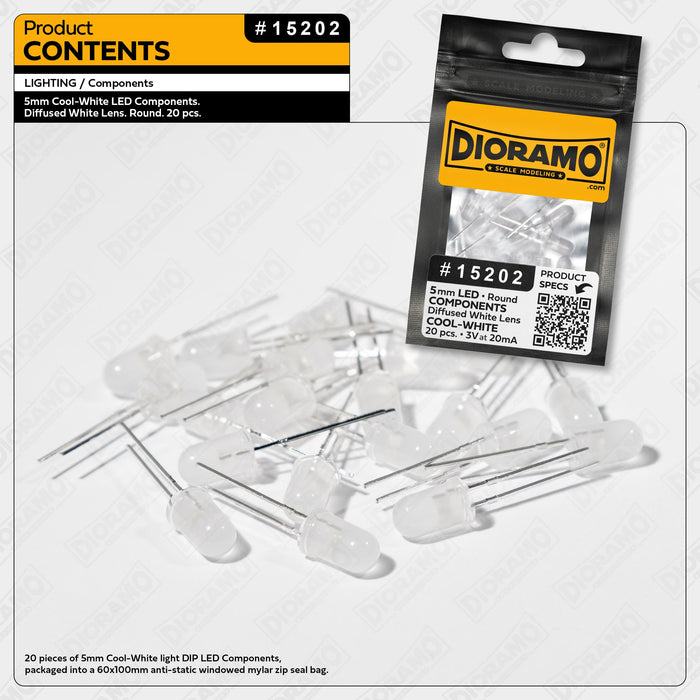

20 Pieces of Cool-White 5mm DIP LED Light Components.
The Venerable DIP LED Light has been the cornerstone of Scale Model Lighting for many years:
- Cool / Cold White (7000 to 9000 K) Light Color DIP LED Component.
- 5mm Round, Diffused White Lens.
- Reputable LED that is Robust, Cost-effective, and Easy to Solder.
Perfect Do-It-Yourself Electronic Parts for Customized Lighting Installations in your Hobbies, Diorama Scenery, Model Train Layouts, DIY Projects, Crafts, Architectural Displays, Toys, Diecast Cars, RC, Dollhouses, Miniature Light Fixtures, Arduino Builds, Electronics Project, Plastic Kits, Legos, Toy Minis, Costumes, 3D Prints, Christmas Village, Holiday Decorations, and more!
Note:
- These LEDs require 3 Volts at a limited current of 20mA to operate.
It is important to limit the current flowing into an LED, which is typically done by connecting a resistor in series with it. This particular 3V LED product does not come with resistors included and is designed for custom installations where the LED will be powered by a source that limits the current.

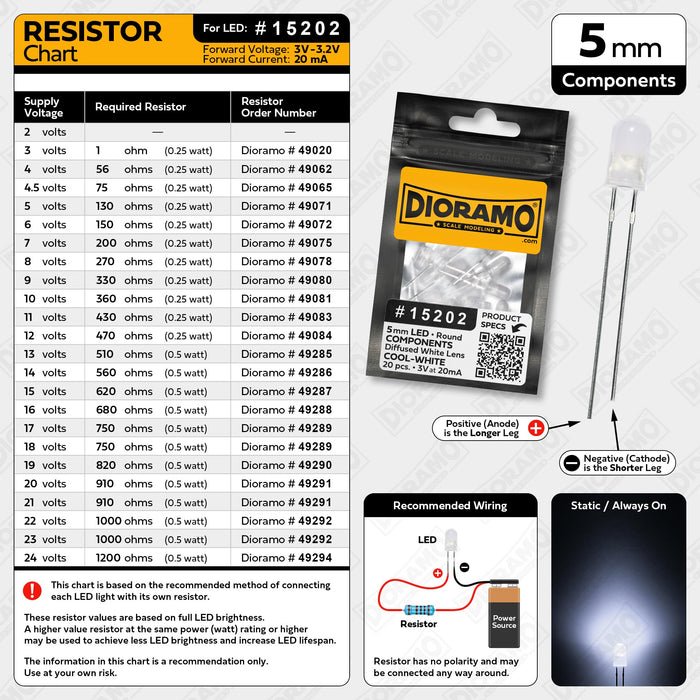

The Resistor Chart Image lists recommended resistors for this LED at various voltages to match your project's requirements.

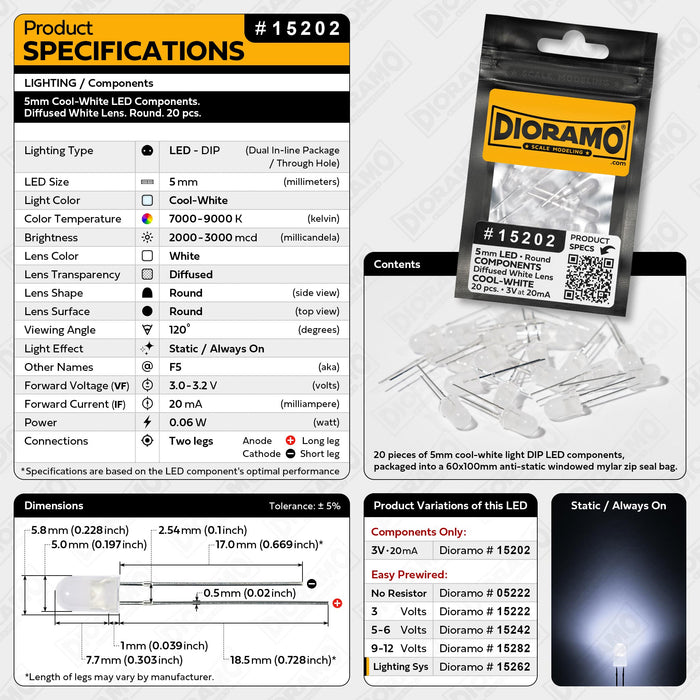

Specifications:
| Lighting Category: | Components Only |
| Lighting Type: | LED - DIP (dual In-line package / through hole) |
| LED Size: | 5 mm (millimeters) |
| Light Color: | Cool-White |
| Color Temperature: | 7000-9000 K (kelvin) |
| Brightness: | 2000-3000 mcd (millicandela) |
| Lens Color: |
White |
| Lens Transparency: | Diffused |
| Lens Shape: | Round (side view) |
| Lens Surface: | Round (top view) |
| Viewing Angle: | 120° (degrees) |
| Light Effect: | Static / Always On |
| Other Names: | Light Emitting Diode, F5 (aka) |
| Forward Voltage (VF): | 3.0-3.2 V (volts) |
| Forward Current (IF): | 20 mA (milliampere) |
| Power: | 0.06 W (watt) |
| Connections: | Two Legs: Anode (+) Long Leg Cathode (-) Short Leg |
* Specifications are based on the LED component's optimal performance.
Product Variations using this Cool-White 5mm Round, Diffused White LED Component:
#15202 - Components Only
#05222 - Easy Prewired (No Resistor Added)
#15222 - Easy Prewired for 3 Volts
#15242 - Easy Prewired for 5-6 Volts
#15282 - Easy Prewired for 9-12 Volts
#15262 - Prewired for Dioramo's Plug & Play Lighting System
Light Colors available for the 5mm Round, Diffused White LED Component:
