5mm Warm-White LED Components. Clear Lens. Round. 20 pcs.

Original price $1.97 - Original price $1.97
Original price
$1.97
$1.97 - $1.97
Current price $1.97

Dioramo Scale Modeling

#15100

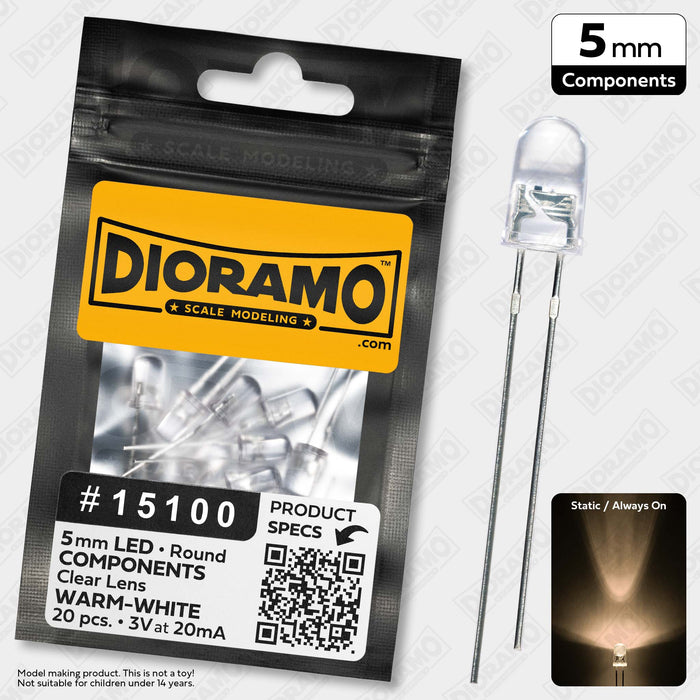

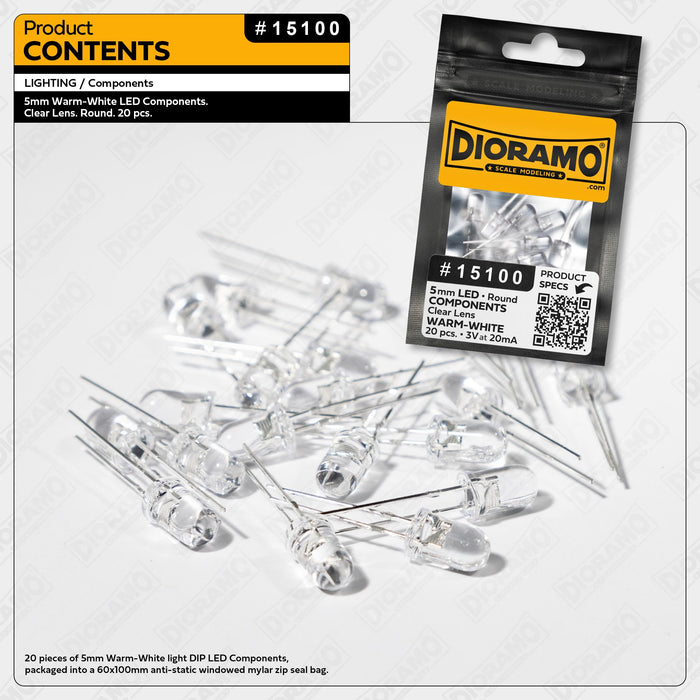

20 Pieces of Warm-White 5mm DIP LED Light Components.

The Venerable DIP LED Light has been the cornerstone of Scale Model Lighting for many years:

  • Warm White (2800 to 3200 K) Light Color DIP LED Component.
  • 5mm Round, Transparent Clear Lens.
  • Reputable LED that is Robust, Cost-effective, and Easy to Solder.



Perfect Do-It-Yourself Electronic Parts for Customized Lighting Installations in your Hobbies, Diorama Scenery, Model Train Layouts, DIY Projects, Crafts, Architectural Displays, Toys, Diecast Cars, RC, Dollhouses, Miniature Light Fixtures, Arduino Builds, Electronics Project, Plastic Kits, Legos, Toy Minis, Costumes, 3D Prints, Christmas Village, Holiday Decorations, and more!



Note:

  1. These LEDs require 3 Volts at a limited current of 20mA to operate.

    It is important to limit the current flowing into an LED, which is typically done by connecting a resistor in series with it. This particular 3V LED product does not come with resistors included and is designed for custom installations where the LED will be powered by a source that limits the current.

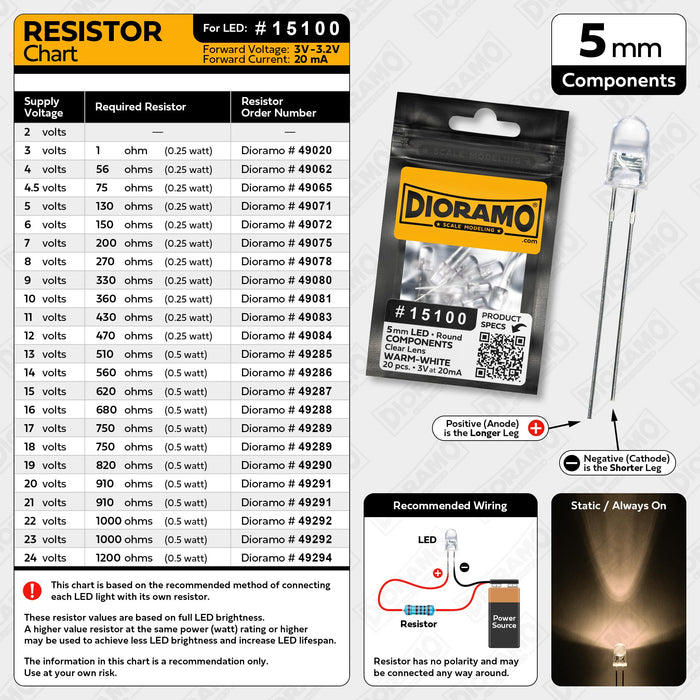

    The Resistor Chart Image lists recommended resistors for this LED at various voltages to match your project's requirements.

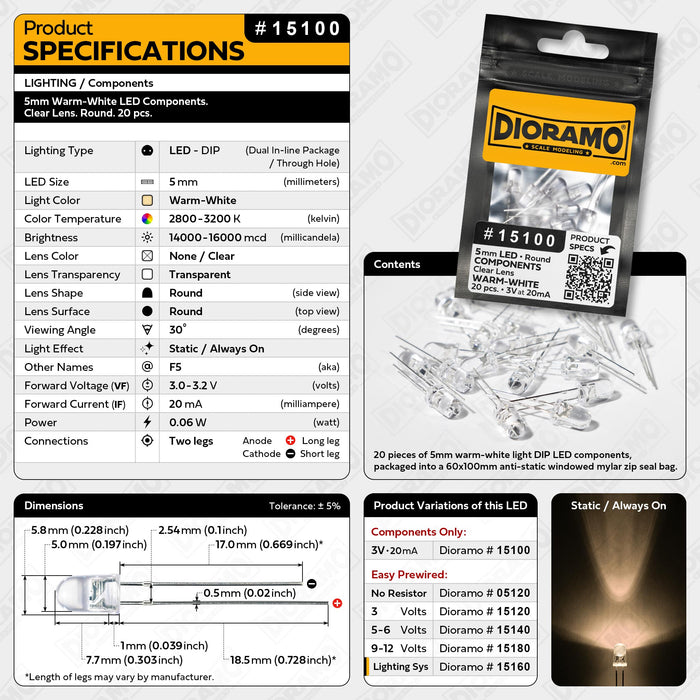

Specifications:

Lighting Category: Components Only
Lighting Type: LED - DIP (dual In-line package / through hole)
LED Size: 5 mm (millimeters)
Light Color: Warm-White
Color Temperature: 2800-3200 K (kelvin)
Brightness: 14000-16000 mcd (millicandela)
Lens Color:
None / Clear
Lens Transparency: Transparent
Lens Shape: Round (side view)
Lens Surface: Round (top view)
Viewing Angle: 30° (degrees)
Light Effect: Static / Always On
Other Names: Light Emitting Diode, F5 (aka)
Forward Voltage (VF): 3.0-3.2 V (volts)
Forward Current (IF): 20 mA (milliampere)
Power: 0.06 W (watt)
Connections: Two Legs:
Anode (+) Long Leg
Cathode (-) Short Leg

* Specifications are based on the LED component's optimal performance.



Product Variations using this Warm-White 5mm Round, Transparent Clear LED Component:

#15100 - Components Only
#05120 - Easy Prewired (No Resistor Added)
#15120 - Easy Prewired for 3 Volts
#15140 - Easy Prewired for 5-6 Volts
#15180 - Easy Prewired for 9-12 Volts
#15160 - Prewired for Dioramo's Plug & Play Lighting System



Light Colors available for the 5mm Round, Transparent Clear LED Component:
