5mm Blue Flashing LED. Clear Lens. No Resistor Prewired. 2 pcs.
Dioramo Scale Modeling

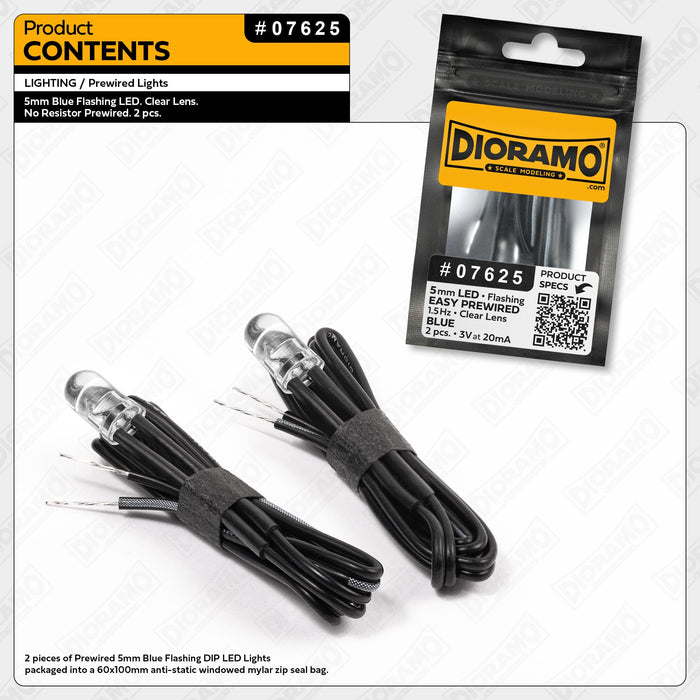

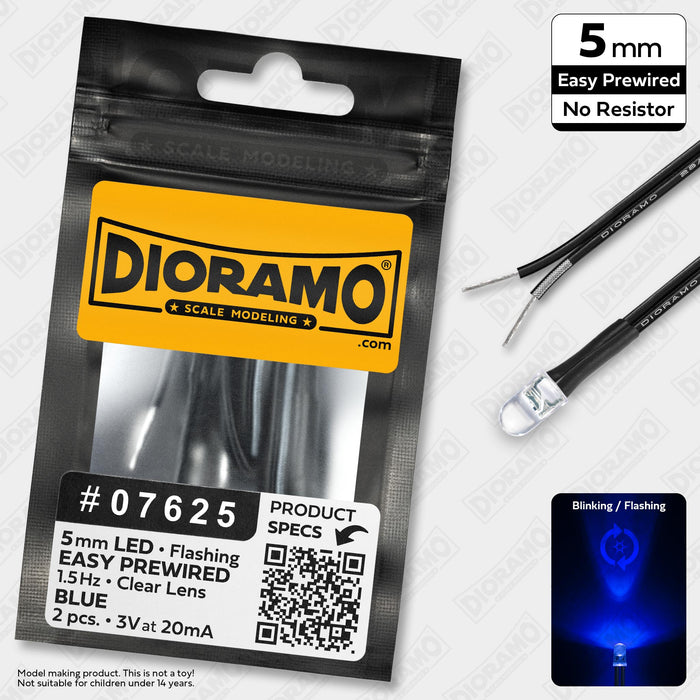

2 Pieces of Blue 5mm DIP LED Lights with a built-in Blinking / Flashing Effect, Easy Prewired without Resistors.
A Prewired Flashing Blue LED Light, commonly used to mimic Law Enforcement, Police, EMT, etc. in Hobbies.
- Blue Light Color Flashing DIP LED Component.
- 5mm Round, Transparent Clear Lens.

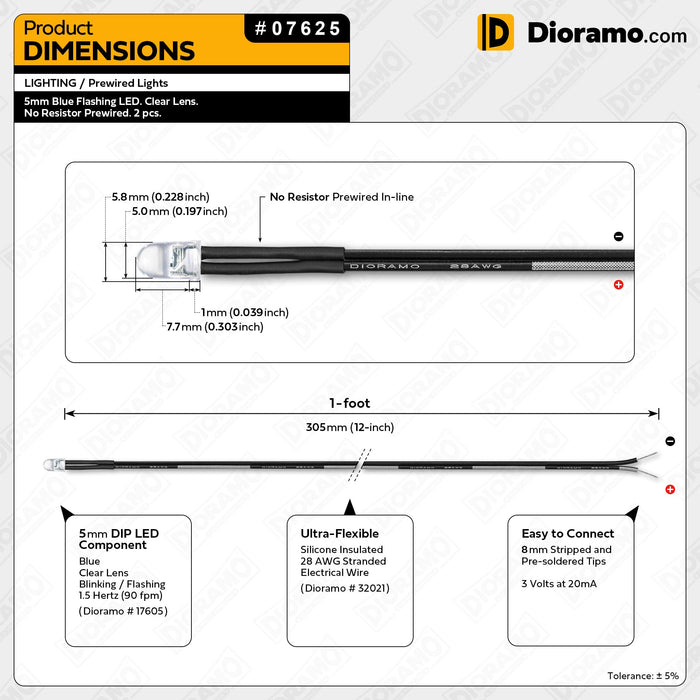

- Soldered and Wired Without a Resistor using 1-foot of our Premium Ultra-Flexible Black 28 AWG Soft Silicone 2P Ribbon Flat Cable (#32021).
- Ending with Easy to Connect, 8mm Stripped and Pre-soldered Tips.
- Reputable LED that is Robust, Cost-effective, and Ready to Use.
Mixing Different Blue Light Color Components also result in out-of-sync Blinking rates, which allows for Customizing unique Scaled Flashing FX in Hobby Models, Dioramas, RC Cars, Diecast, Police Vehicles, Toys, etc.
Notes:
- These LEDs require 3 Volts at a limited current of 20mA to operate.
It is important to limit the current flowing into an LED, which is typically done by connecting a resistor in series with it. This particular 3V LED product does not come with resistors included and is designed for custom installations where the LED will be powered by a source that limits the current.

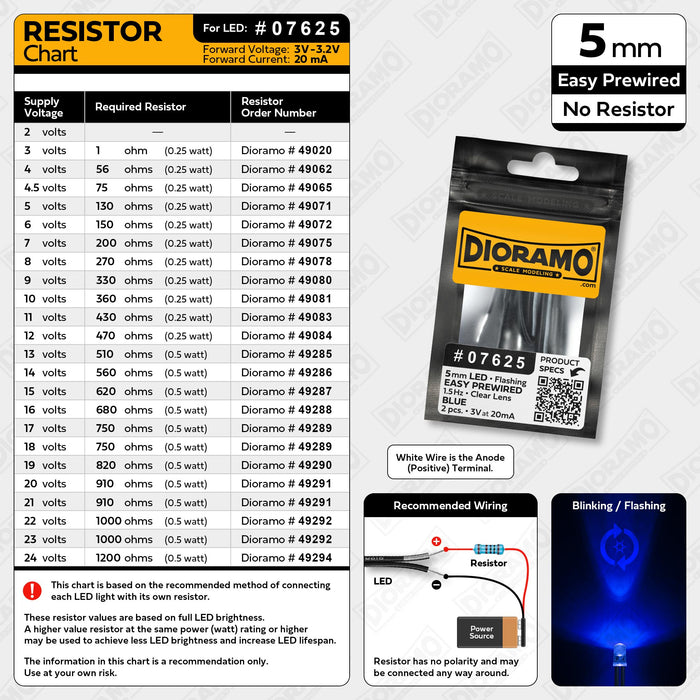

The Resistor Chart Image lists recommended resistors for this LED at various voltages to match your project's requirements. - These LEDs Flash / Blink at a rate of 1.5 Hertz, which is 90 cycles per minute.

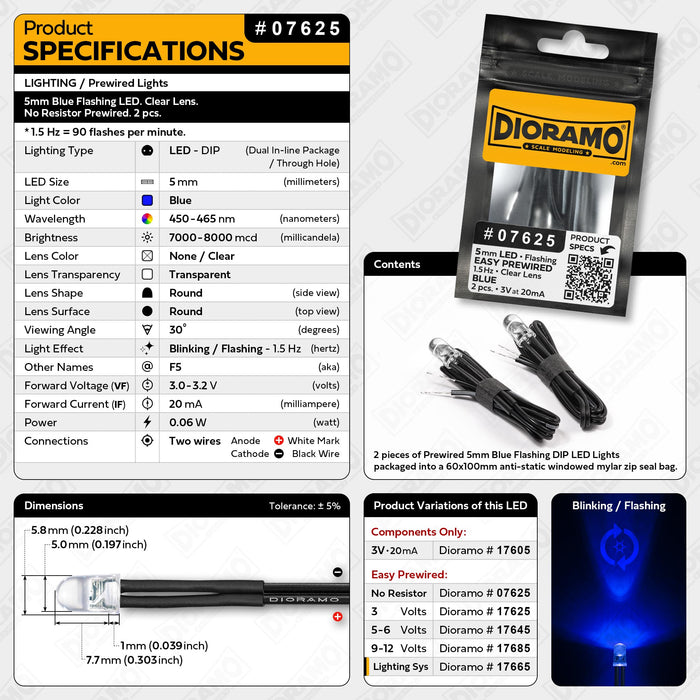

Specifications:
| Lighting Category: | Easy Prewired |
| Lighting Type: | LED - DIP (dual In-line package / through hole) |
| LED Size: | 5 mm (millimeters) |
| Light Color: | Blue |
| Wavelength: | 450-465 nm (nanometers) |
| Brightness: | 7000-8000 mcd (millicandela) |
| Lens Color: |
None / Clear |
| Lens Transparency: | Transparent |
| Lens Shape: | Round (side view) |
| Lens Surface: | Round (top view) |
| Viewing Angle: | 30° (degrees) |
| Light Effect: | Blinking / Flashing 1.5 Hz (hertz) |
| Other Names: | Light Emitting Diode, F5 (aka) |
| Forward Voltage (VF): | 3.0-3.2 V (volts) |
| Forward Current (IF): | 20 mA (milliampere) |
| Power: | 0.06 W (watt) |
| Connections: | Two Wires: Anode (+) White Mark Cathode (-) Black Wire |
* Specifications are based on the LED component's optimal performance.
Product Variations using this Blue 5mm Round, Flashing LED Component:
#17605 - Components Only
#07625 - Easy Prewired (No Resistor Added)
#17625 - Easy Prewired for 3 Volts
#17645 - Easy Prewired for 5-6 Volts
#17685 - Easy Prewired for 9-12 Volts
#17665 - Prewired for Dioramo's Plug & Play Lighting System
All Types - Prewired 5mm DIP LED Lights
