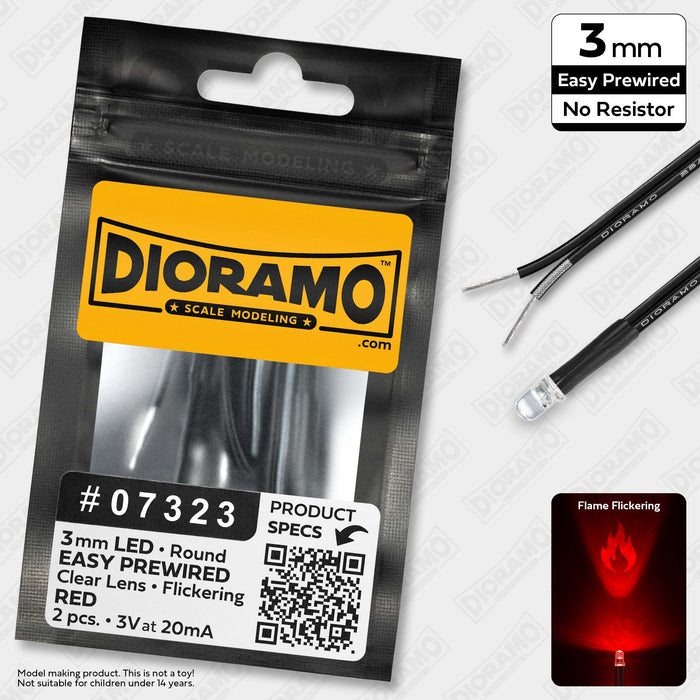

3mm Red Flame Flickering LED Lights. No Resistor Prewired 1ft. 2 pcs.
Dioramo Scale Modeling # 07323
2 Pieces of Easy Prewired Red 3mm DIP LED Lights with a built-in Flame Flickering Effect, and No Added Resistors.
- A Red Light Color 3mm Flickering DIP LED Component (#17303).
- Soldered and Wired Without a Resistor using 1-foot of our Premium Ultra-Flexible Black 28 AWG Soft Silicone 2P Ribbon Flat Cable (#32021).
- Ending with Easy to Connect, 8mm Stripped and Pre-soldered Tips.
Perfect for Creating Custom Lighting Effects in Scale Models, Miniatures, Dioramas, and DIY Hobby Projects.
These LEDs are commonly used to mimic a Burning Flame, Fire, Gas Lamp, Torch, Candle, Welder, etc.
Mixing Components with Different Light Colors also results in out-of-sync Flicker rates, which allows for Customizing unique Flashing Burn FX in Hobbies, Fireplaces, Firepits, Campfires, House Fires, Dying Neon Signs, and Candlelight Models in your Diorama Scenery and Buildings, Model Train Layouts, Miniature Light Fixtures, Toys, Plastic Kits, Diecast Cars, RC, Crafts, Dollhouses, Legos, Costumes, Toy Minis, Decorations, and more!
These LEDs require 3 Volts at a limited current of 20mA to operate.
Note:
- Limiting current into an LED is important, and it is usually achieved by connecting a resistor to the LED. This 3V LED product does not include resistors and is intended for custom installations where the LED will be powered by a current-limiting source.
The Resistor Chart Image lists recommended resistors for this LED at various voltages to match your project's requirements.
Specifications:
| Lighting Category: | Easy Prewired |
| Lighting Type: | LED - DIP (dual In-line package / through hole) |
| LED Size: | 3 mm (millimeters) |
| Light Color: | Red |
| Wavelength: |
620-625 nm (nanometers) |
| Brightness: | 1000-1200 mcd (millicandela) |
| Lens Color: |
None / Clear |
| Lens Transparency: | Transparent |
| Lens Shape: | Round (side view) |
| Lens Surface: | Round (top view) |
| Viewing Angle: | 30° (degrees) |
| Light Effect: | Flame Flickering |
| Other Names: | F3 (aka) |
| Forward Voltage (VF): | 3.0-3.2 V (volts) |
| Forward Current (IF): | 20 mA (milliampere) |
| Power: | 0.06 W (watt) |
| Connections: | Two Wires: Anode (+) White Mark Cathode (-) Black Wire |
* Specifications are based on the LED component's optimal performance.
Product Variations using this Red 3mm Flickering LED Component:
#17303 - Components Only
#07323 - Easy Prewired (No Resistor Added)
#17323 - Easy Prewired for 3 Volts
#17343 - Easy Prewired for 5-6 Volts
#17383 - Easy Prewired for 9-12 Volts
#17363 - Prewired for Dioramo's Plug & Play Lighting System
Light Colors available for the No Resistor Easy Prewired 3mm Flickering LED:
