0402 Yellow-Green SMD LED. No Resistor Easy Prewired 2ft. 2 pcs.
Dioramo Scale Modeling

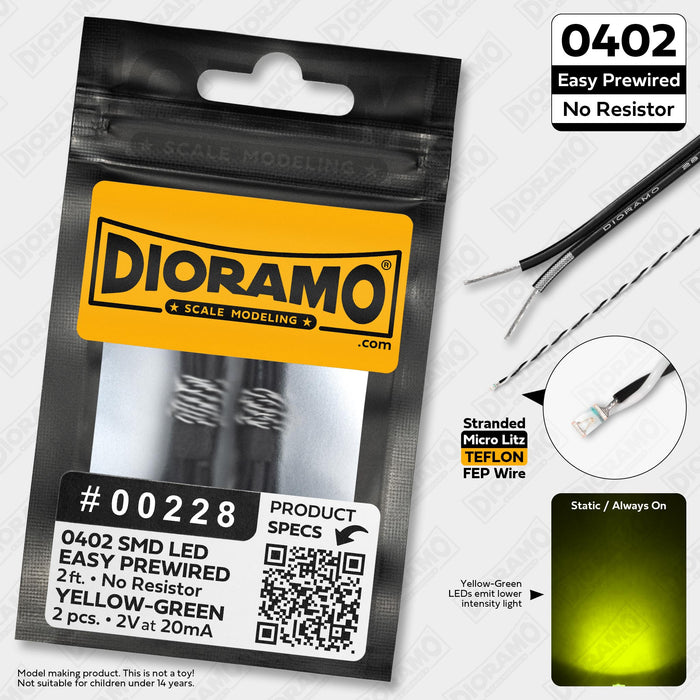

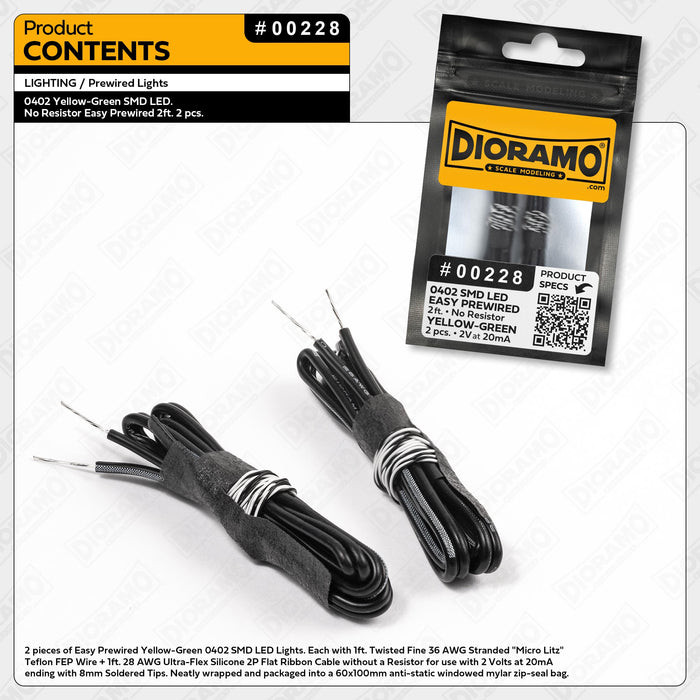

2 Pieces of Yellow-Green 0402 SMD LED Lights, Easy Prewired without Resistors.

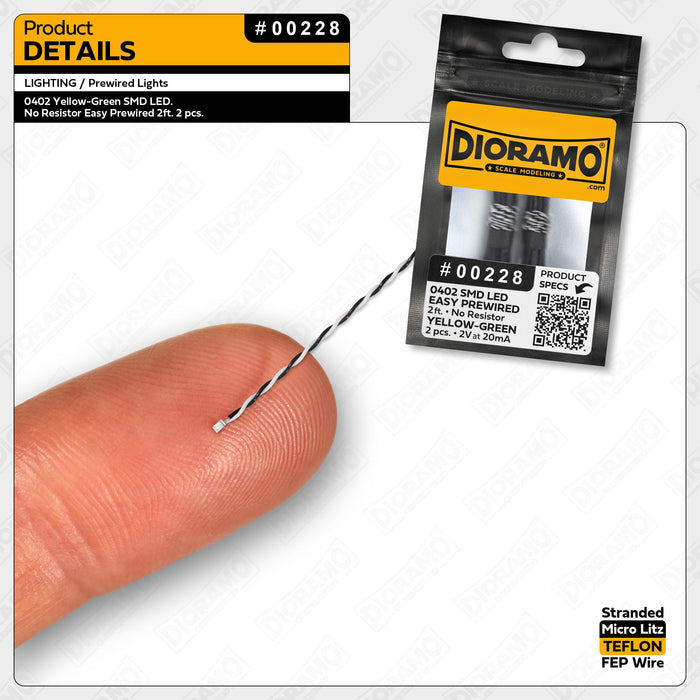

The Smallest Light of them all:
- Yellow-Green / Chartreuse Light Color 0402 SMD "Chip" LED.

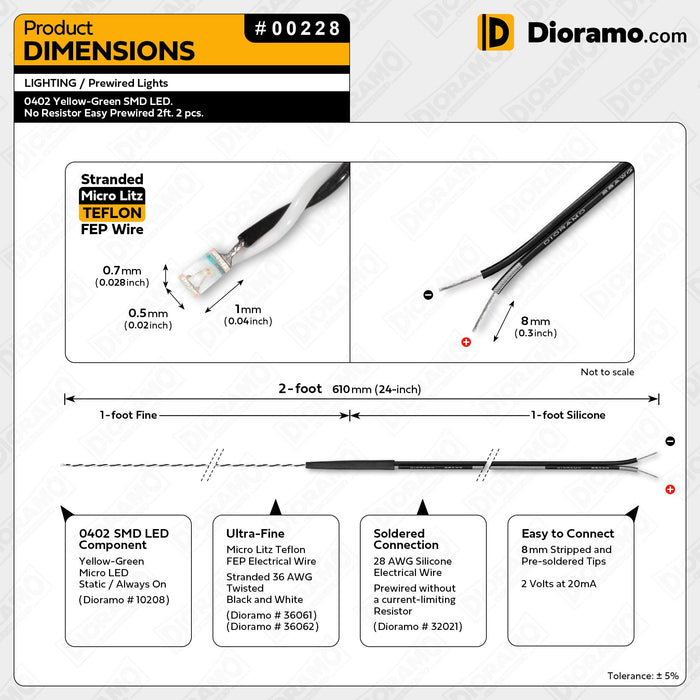

- Soldered and Wired Without a Resistor using 1-foot of our Ultra-Fine 36 AWG Stranded Micro Litz Teflon FEP Twisted Wires (Black #36061 & White #36062) followed by an additional foot of our Premium Ultra-Flexible Black 28 AWG Soft Silicone 2P Ribbon Flat Cable (#32021).
- Ending with Easy to Connect, 8mm Stripped and Pre-soldered Tips.
Perfect for Quick Custom LED Lighting Creations in Tight Spaces, Small Scale Models, Miniatures, Dioramas, and DIY Hobby Projects. Set the Mood or Create an Effect when Customizing Miniature Hobbies, Light Fixtures in Diorama Scenery and Buildings, Model Train Layouts, Toys, Plastic Kits, Diecast Cars, RC, Crafts, Dollhouses, Costumes, Toy Minis, Decorations, and more!
Notes:
- These LEDs require 2 Volts at a limited current of 20mA to operate.
It is important to limit the current flowing into an LED, which is typically done by connecting a resistor in series with it. This particular 2V LED product does not come with resistors included and is designed for custom installations where the LED will be powered by a source that limits the current.

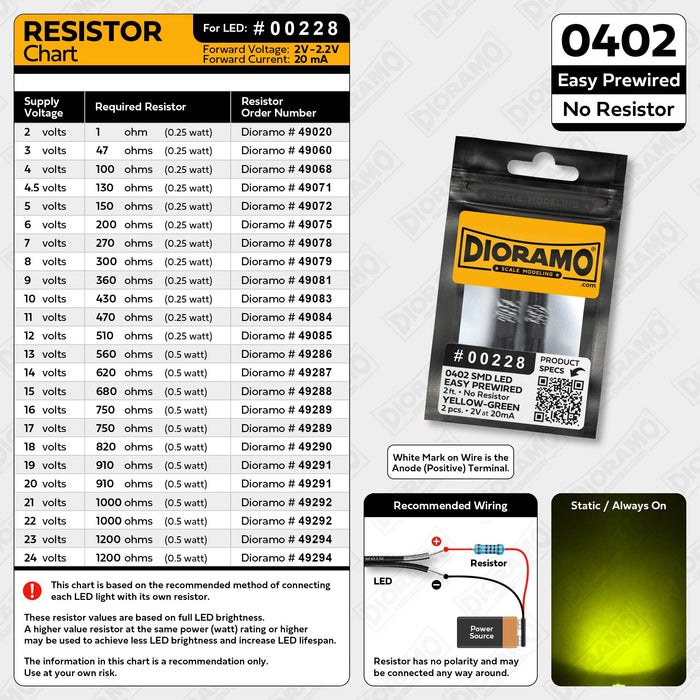

The Resistor Chart Image lists recommended resistors for this LED at various voltages to match your project's requirements. - Yellow-Green LEDs emit lower-intensity light. To achieve a vibrant Yellow-Green color light, use both Yellow (or Golden-White) and Green LED lights together instead of Yellow-Green.

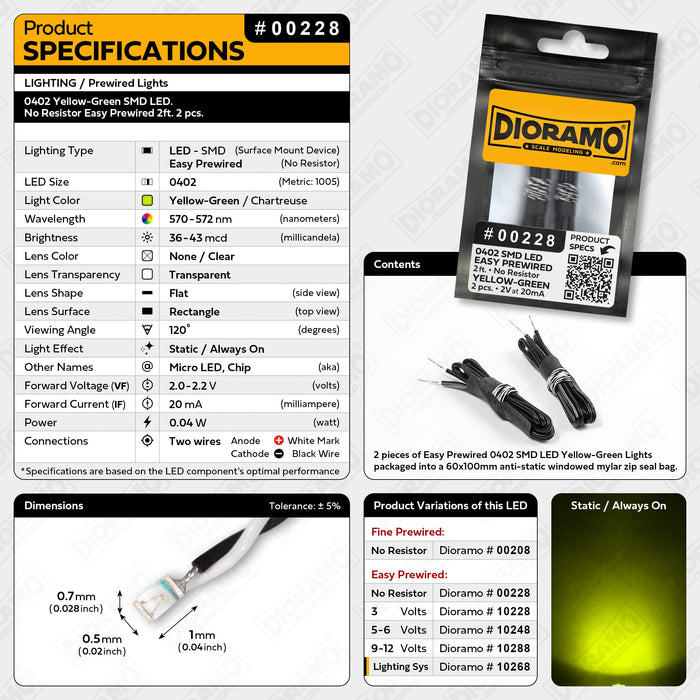

Specifications:
| Lighting Category: | Easy Prewired |
| Lighting Type: | LED - SMD (surface mount device) |
| LED Size: | 0402 (metric: 1005) |
| LED Dimensions: |
0.04 in. × 0.02 in. × 0.016 in. 1.0 mm x 0.5 mm x 0.4 mm |
| Light Color: | Yellow-Green / Chartreuse |
| Wavelength: | 570-572 nm (nanometers) |
| Brightness: | 36-42 mcd (millicandela) |
| Lens Color: |
None / Clear |
| Lens Transparency: | Transparent |
| Lens Shape: | Flat (side view) |
| Lens Surface: | Rectangle (top view) |
| Viewing Angle: | 120° (degrees) |
| Light Effect: | Static / Always On |
| Other Names: | Micro LED, Chip (aka) |
| Forward Voltage (VF): | 2.0-2.2 V (volts) |
| Forward Current (IF): | 20 mA (milliampere) |
| Power: | 0.04 W (watt) |
| Connections: |
Two Wires: Anode (+) White Mark Cathode (-) Black Wire |
* Specifications are based on the LED component's optimal performance.
Product Variations using this Yellow-Green 0402 SMD LED Component:
#10208 - Components Only
#00208 - Fine Prewired (No Resistor Added)
#00228 - Easy Prewired (No Resistor Added)
#10228 - Easy Prewired for 3 Volts
#10248 - Easy Prewired for 5-6 Volts
#10278 - Easy Prewired for 9-12 Volts
#10268 - Prewired for Dioramo's Plug & Play Lighting System
Light Colors available for the No Resistor Easy Prewired 0402 SMD LED:
All Types - Prewired 0402 SMD LEDs
