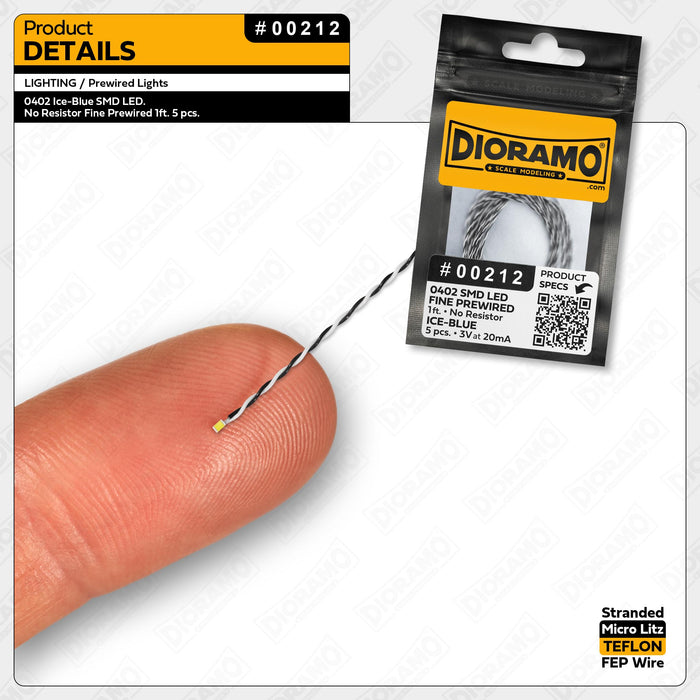

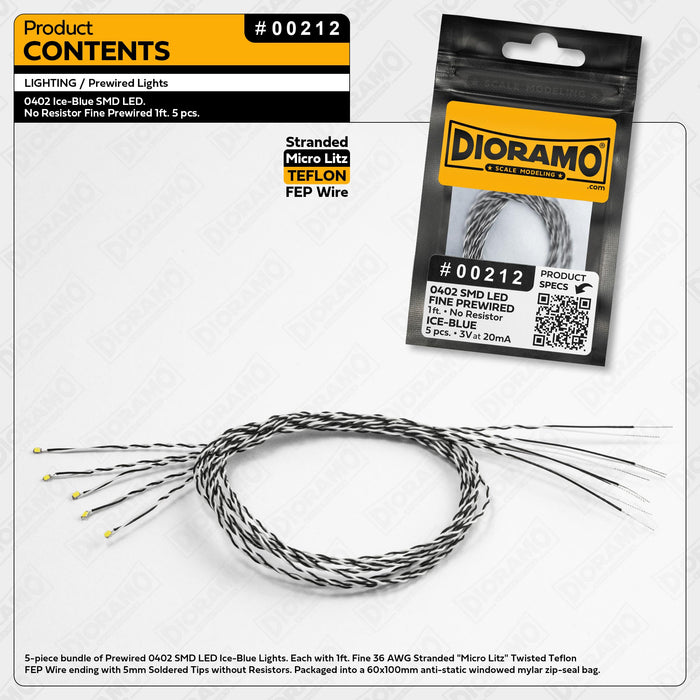

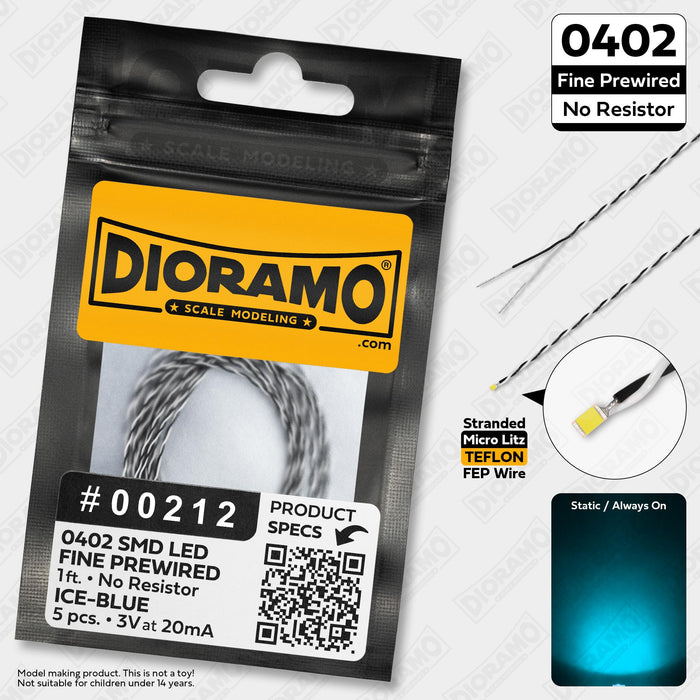

5 Pieces of Ice-Blue 0402 SMD LED Lights, Fine Prewired without Resistors.
The Smallest Light of them all:
- Ice-Blue Light Color 0402 SMD "Chip" LED.
- Soldered and Wired Without a Resistor using 1-foot of our Ultra-Fine 36 AWG Stranded Micro Litz Teflon FEP Twisted Wires (Black #36061 & White #36062).
- Ending with 5mm Stripped and Pre-soldered Tips.
Perfect for Custom LED Lighting Creations in Tight Spaces, Small Scale Models, Miniatures, Dioramas, and DIY Hobby Projects. Set the Mood or Create an Effect when Customizing Miniature Hobbies, Light Fixtures in Diorama Scenery and Buildings, Model Train Layouts, Toys, Plastic Kits, Diecast Cars, RC, Crafts, Dollhouses, Costumes, Toy Minis, Decorations, and more!
Note:
- These LEDs require 3 Volts at a limited current of 20mA to operate.
It is important to limit the current flowing into an LED, which is typically done by connecting a resistor in series with it. This particular 3V LED product does not come with resistors included and is designed for custom installations where the LED will be powered by a source that limits the current.

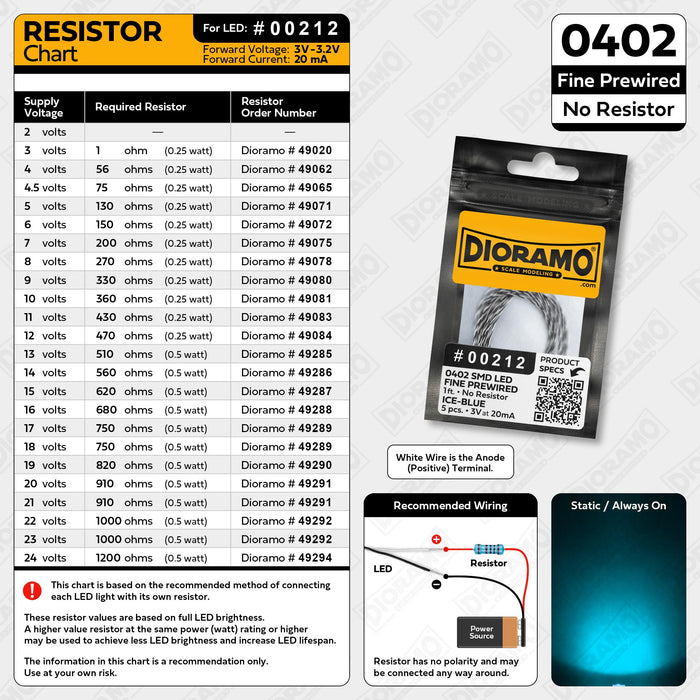

The Resistor Chart Image lists recommended resistors for this LED at various voltages to match your project's requirements.

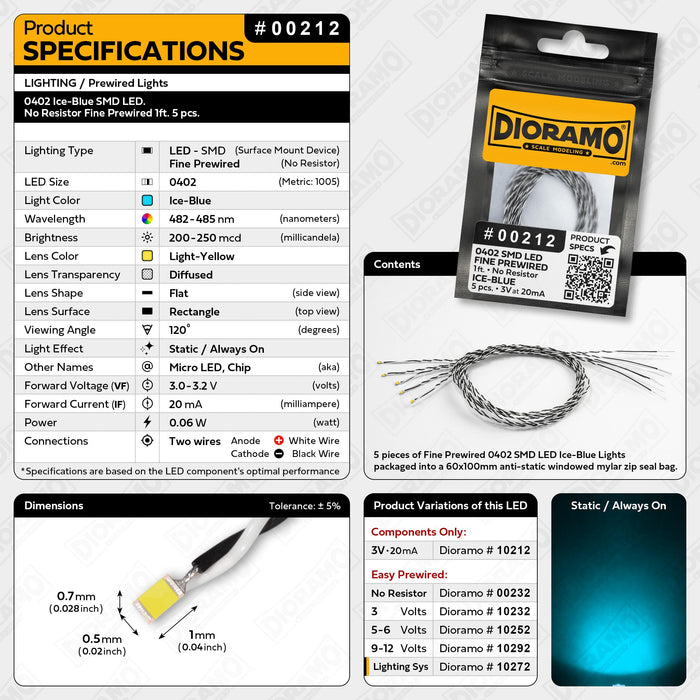

Specifications:
| Lighting Category: | Fine Prewired |
| Lighting Type: | LED - SMD (surface mount device) |

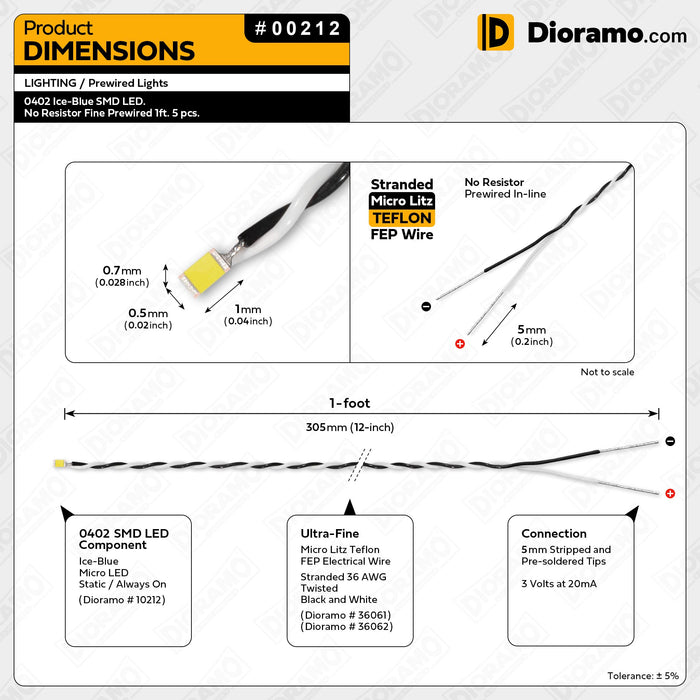

| LED Size: | 0402 (metric: 1005) |
| LED Dimensions: |
0.04 in. × 0.02 in. × 0.016 in. 1.0 mm x 0.5 mm x 0.4 mm |
| Light Color: | Ice-Blue |
| Wavelength: |
482-485 nm (nanometers) |
| Brightness: | 200-250 mcd (millicandela) |
| Lens Color: |
Light-Yellow |
| Lens Transparency: | Diffused |
| Lens Shape: | Flat (side view) |
| Lens Surface: | Rectangle (top view) |
| Viewing Angle: | 120° (degrees) |
| Light Effect: | Static / Always On |
| Other Names: | Micro LED, Chip (aka) |
| Forward Voltage (VF): | 3.0-3.2 V (volts) |
| Forward Current (IF): | 20 mA (milliampere) |
| Power: | 0.06 W (watt) |
| Connections: |
Two Wires: Anode (+) White Wire Cathode (-) Black Wire |
* Specifications are based on the LED component's optimal performance.
Product Variations using this Ice-Blue 0402 SMD LED Component:
#10212 - Components Only
#00212 - Fine Prewired (No Resistor Added)
#00232 - Easy Prewired (No Resistor Added)
#10232 - Easy Prewired for 3 Volts
#10252 - Easy Prewired for 5-6 Volts
#10292 - Easy Prewired for 9-12 Volts
#10272 - Prewired for Dioramo's Plug & Play Lighting System
Light Colors available for the No Resistor Fine Prewired 0402 SMD LED:
All Types - Prewired 0402 SMD LEDs
