5mm Red Flashing LED. Clear Lens. Lighting System Prewired. 2 pcs.

5mm Red Flashing LED. Clear Lens. Lighting System Prewired. 2 pcs.

$8.43 - $8.43
$8.43
$8.43 - $8.43
$8.43

Dioramo Scale Modeling

#17663

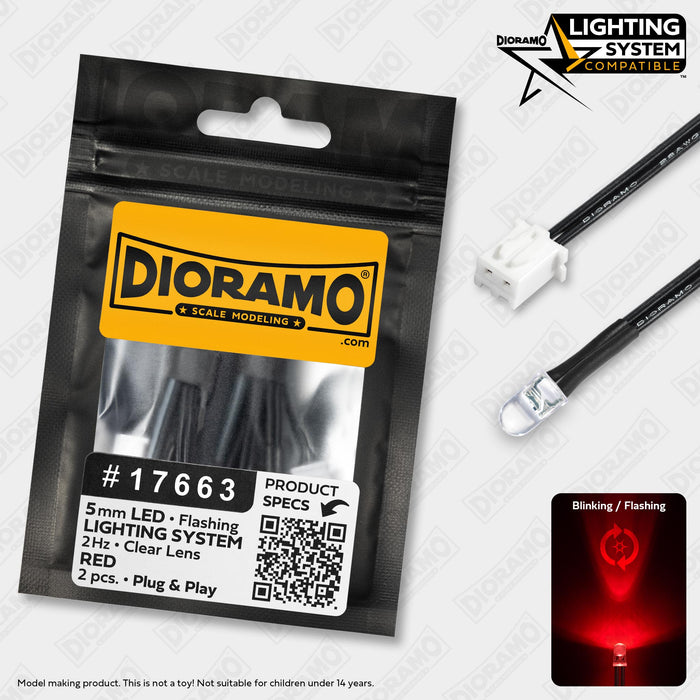

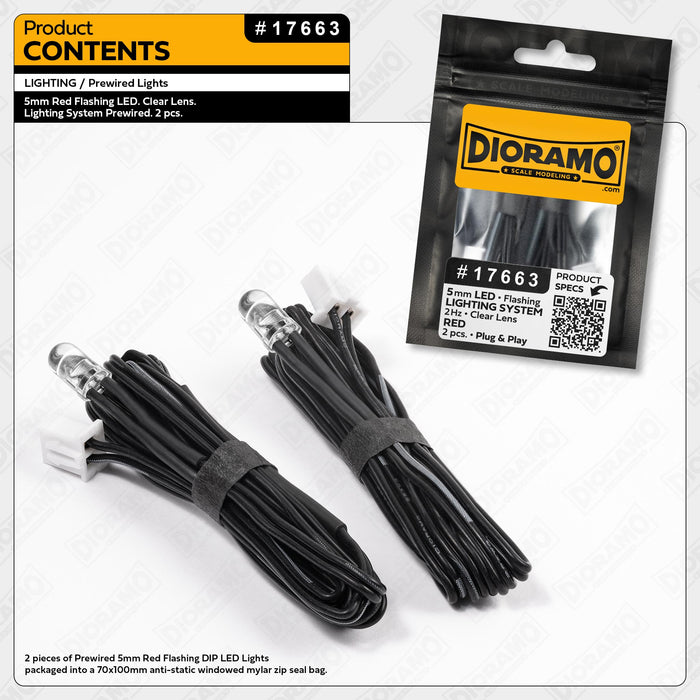

2 Pieces of Red 5mm DIP LED Lights with a built-in Blinking / Flashing Effect, Prewired and Compatible with the Dioramo Lighting System.

A Prewired Flashing Red LED Light, commonly used to mimic Law Enforcement, Fire Truck, EMT, etc. in Hobbies.

  • Red Light Color Flashing DIP LED Component.
  • 5mm Round, Transparent Clear Lens.

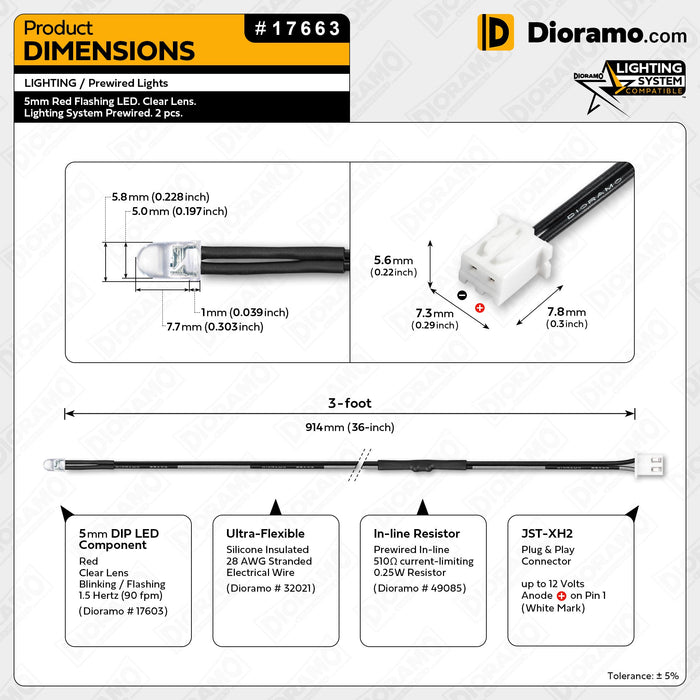

  • Soldered and Wired with an in-line 510R current-limiting Resistor (#49085) using 3-feet of our Premium Ultra-Flexible Black 28 AWG Soft Silicone 2P Ribbon Flat Cable (#32021).
  • Ending with a JST-XH2 Connector Plug.
  • Reputable LED that is Robust, Cost-effective, and Ready to Use.



Mixing Different Red Light Color Components also result in out-of-sync Blinking rates, which allows for Customizing unique Scaled Flashing FX in Hobby Models, Dioramas, RC Cars, Diecast, Fire Engines, Toys, etc.



Notes:

  1. This Plug & Play LED Light is Compatible with the Dioramo Lighting System, and has a Fail-Safe design. You can't cause harm by accidentally connecting it the wrong way. If the plug fits into a connector, then it may be connected there.
  2. Flashing / Blinking LEDs can not be dimmed. Starving the internal chip of sufficient power may have adverse effects.
  3. These LEDs Flash / Blink at a rate of 1.5 Hertz, which is 90 cycles per minute.

Embracing Modularity

  • The Dioramo Lighting System is Never Obsolete.
  • Only get the parts you want, to build exactly what you need.
  • Grow your Lighting System as your project expands.



Specifications:

Lighting Category: Prewired for Lighting System
Lighting Type: LED - DIP (dual In-line package / through hole)
LED Size: 5 mm (millimeters)
Light Color: Red
Wavelength: 620-625 nm (nanometers)
Brightness: 2000-3000 mcd (millicandela)
Lens Color:
 None / Clear
Lens Transparency: Transparent
Lens Shape: Round (side view)
Lens Surface: Round (top view)
Viewing Angle: 30° (degrees)
Light Effect: Blinking / Flashing
1.5 Hz (hertz)
Other Names: Light Emitting Diode, F5 (aka)
Supply Voltage: 12 V (volts)
Current Limiting: 510 R (ohms) Resistor Prewired In-line
Power: 0.04 W (watt)
Connection: JST-XH2 Connector Plug

* Specifications are based on the LED component's optimal performance.



Product Variations using this Red 5mm Round, Flashing LED Component:

#17603 - Components Only
#07623 - Easy Prewired (No Resistor Added)
#17623 - Easy Prewired for 3 Volts
#17643 - Easy Prewired for 5-6 Volts
#17683 - Easy Prewired for 9-12 Volts
#17663 - Prewired for Dioramo's Plug & Play Lighting System



All Types - Prewired 5mm DIP LED Lights





Important:

The Dioramo Lighting System is designed to be both an Easy-Peasy Plug-and-Play Solution and a Customizable System for DIY Builders. Our DIY Adapters and Cables allow for both approaches.

DIY Connections, however, are done at your own risk. Faulty DIY connections resulting in a short circuit may damage the electronics.
