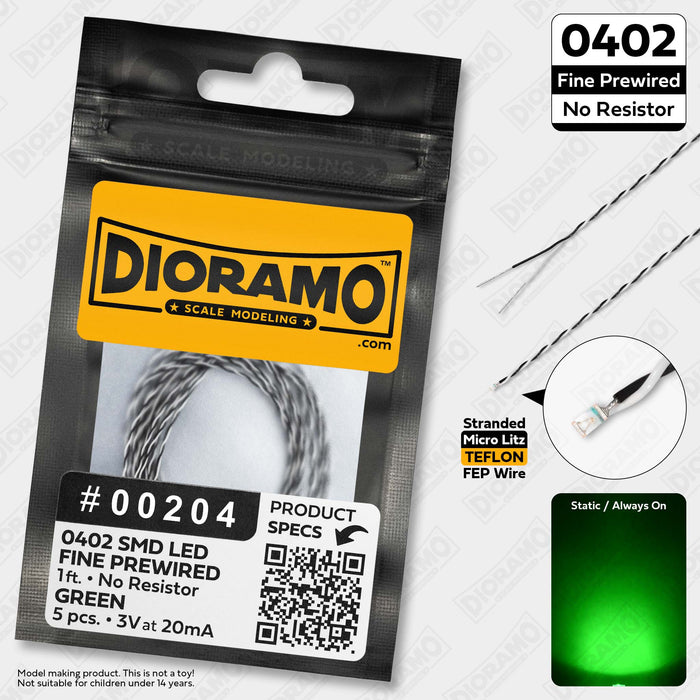

0402 Green SMD LED. No Resistor Fine Prewired 1ft. 5 pcs.
Dioramo Scale Modeling # 00204
5 Pieces of Fine Pre-wired Green 0402 SMD Mini LED Lights with No Added Resistors.
- A Tiny Green Light Color 0402 SMD LED Component (#10204).
- Soldered and Wired Without a Resistor using 1-foot of our Ultra-Fine 36 AWG Stranded Micro Litz Teflon FEP Twisted Wires (Black #36061 & White #36062).
- Ending with 5mm Stripped and Pre-soldered Tips.
Perfect for Custom LED Lighting Installations in Small Scale Models, Miniatures, Dioramas, and DIY Hobby Projects.
Commonly used to Set the Mood when Customizing Miniature Hobbies, Light Fixtures in Diorama Scenery and Buildings, Model Train Layouts, Toys, Plastic Kits, Diecast Cars, RC, Crafts, Dollhouses, Costumes, Toy Minis, Decorations, and more!
These LEDs require 3 Volts at a limited current of 20mA to operate.
Note:
- Limiting current into an LED is important, and it is usually achieved by connecting a resistor to the LED. This 3V LED product does not include resistors and is intended for custom installations where the LED will be powered by a current-limiting source.
The Resistor Chart Image lists recommended resistors for this LED at various voltages to match your project's requirements.
Specifications:
| Lighting Category: | Fine Prewired |
| Lighting Type: | LED - SMD (surface mount device) |
| LED Size: | 0402 (metric: 1005) |
| LED Dimensions: |
0.04 in. × 0.02 in. × 0.028 in. 1.0 mm x 0.5 mm x 0.7 mm |
| Light Color: | Green |
| Wavelength: |
525-527 nm (nanometers) |
| Brightness: | 200-250 mcd (millicandela) |
| Lens Color: |
None / Clear |
| Lens Transparency: | Transparent |
| Lens Shape: | Flat (side view) |
| Lens Surface: | Rectangle (top view) |
| Viewing Angle: | 120° (degrees) |
| Light Effect: | Static / Always On |
| Other Names: | Micro LED, Chip (aka) |
| Forward Voltage (VF): | 3.0-3.2 V (volts) |
| Forward Current (IF): | 20 mA (milliampere) |
| Power: | 0.06 W (watt) |
| Connections: | Two Wires: Anode (+) White Wire Cathode (-) Black Wire |
* Specifications are based on the LED component's optimal performance.
Product Variations using this Green 0402 SMD LED Component:
#10204 - Components Only
#00204 - Fine Prewired (No Resistor Added)
#00224 - Easy Prewired (No Resistor Added)
#10224 - Easy Prewired for 3 Volts
#10244 - Easy Prewired for 5-6 Volts
#10284 - Easy Prewired for 9-12 Volts
#10264 - Prewired for Dioramo's Plug & Play Lighting System
