3V LED Light Fixture Junction Box for Lighting System, AC, DC, or DCC

A Multi-compatible Junction Box to Connect your 2 or 3 Volt LED Light Fixtures to the Dioramo Lighting System, or to 9-17 Volt AC, DC, or DCC Power.

• No need to worry about Soldering, easily connect your Light's Wires to the Push Spring Connectors.
• Load up to 300mA, that's 15 Regular 20mA 3V LEDs!
• No need to worry about Resistors, it features a built-in 1-watt Current-Limiting Resistor Array.
• Includes a 2ft. JST Feeder Cable (#30194) to Plug this Junction Box into any Dioramo Lighting System Light Port.
• AC / DCC Power Compatible, it features a built-in Bridge Rectifier.
• Includes Mounting Screws (#55330). An optional Die Cut 3M VHB Double-sided Adhesive Pad for screwless mounting is also available (#55202).

Perfect for Quickly and Easily Adding Miniature Light Fixtures and LEDs to your Model Train Layouts, Dioramas, Hobbies, Scale Model Scenery, DIY Projects, Crafts, Architectural Displays, Toys, Diecast Cars, RC, Dollhouses, Miniature Light Fixtures, Plastic Kits, Legos, Toy Minis, Costumes, 3D Prints, Christmas Village, Holiday Decorations, and more!

Important:

1. Dioramo Lighting System Products are plug-and-play with a fail-safe design. Its successful operation relies on connecting compatible products with restrictive connectors, preventing incorrect polarity or short circuits.
2. Wiring DIY (do-it-yourself) Connections (using this Junction Box) to the Dioramo Lighting System products negates these safety protections and is done at your own risk. Faulty DIY connections resulting in a short circuit may damage electronic circuits. Dioramo products damaged as a result of a short circuit from a DIY connection are not eligible for replacement.
3. Tip: Connect your LEDs and Wiring to this Junction Box before connecting it to the Dioramo Lighting System. This will help prevent open wire ends from touching one another, causing a short circuit.

Notes:

1. LED Brightness will slightly decrease as the number of LEDs connected to the Junction Box increases.
2. LED Brightness will slightly decrease as the Power Supply Voltage decreases.
3. To connect your wires, push down on the white spring connectors using a screwdriver and insert the wire ends.

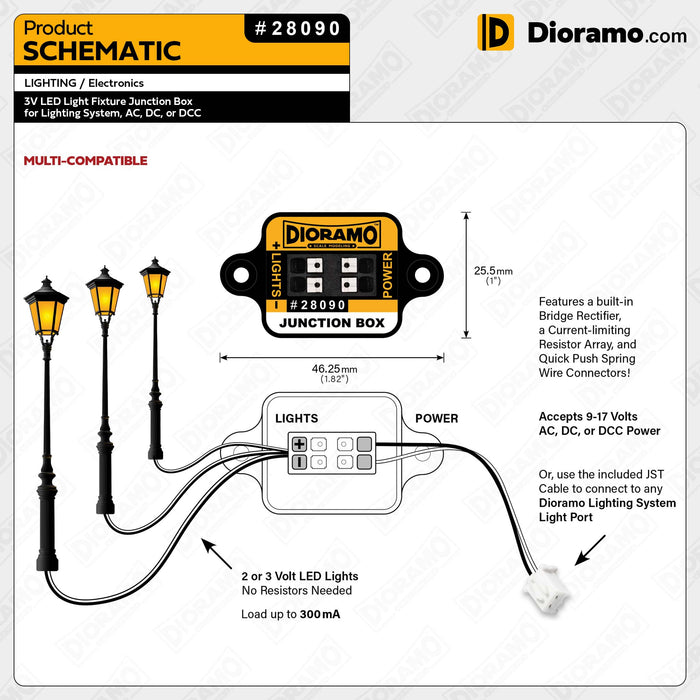

4. The Polarity of the Power Cable connection to this Junction Box is irrelevant. See the Specifications PDF for Technical Information and Wiring Diagram.

Embracing Modularity

• The Dioramo Lighting System is Never Obsolete.
• Only get the parts you want, to build exactly what you need.
• Grow your Lighting System as your project expands.

Specifications:

All Types - Dioramo Lighting System Compatible Products

Important:

The Dioramo Lighting System is designed to be both an Easy-Peasy Plug-and-Play Solution and a Customizable System for DIY Builders. Our DIY Adapters and Cables allow for both approaches.

DIY Connections, however, are done at your own risk. Faulty DIY connections resulting in a short circuit may damage the module's electronics.
