Panel Mount Power Socket Adapter Cable for Dioramo Lighting System
Dioramo Scale Modeling

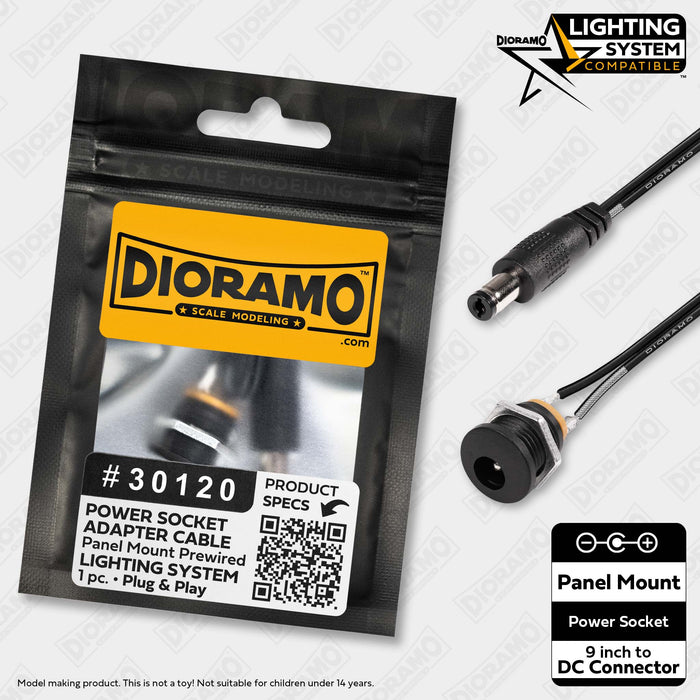

Panel Mountable DC Power Socket Adapter Cable, Prewired and Compatible with the Dioramo Lighting System.
Mount this Power Socket to an Exterior Panel for quickly connecting and disconnecting the Power Supply from your Project:
- Features the popular 5.5x2.1mm DC Barrel Plug Connector and Socket.
- Soldered and Wired using 9 inches of our Premium Ultra-Flexible Black 22 AWG Soft Silicone 2P Ribbon Flat Cable (#32081).
- Mounting Hardware Included.
- Custom-made, Ready to Use Cable Assembly using Quality Components.
Perfect for Quick and Easy Plug & Play Power Connections to your Hobbies, Diorama Scenery, Model Train Layouts, DIY Projects, Crafts, Architectural Displays, Toys, Diecast Cars, RC, Dollhouses, Miniature Light Fixtures, Arduino Builds, Electronics Project, Plastic Kits, Legos, Toy Minis, Costumes, 3D Prints, Christmas Village, Holiday Decorations, and more!
Notes:
- Requires a 15/32" (11.5 to 12mm) Diameter Hole for Panel Mounting.
- Accommodates Panel Thicknesses up to 1/4" (6.35mm).
- This Plug & Play Power Socket Adapter Cable is Compatible with the Dioramo Lighting System, and has a Fail-Safe design. You can't cause harm by accidentally connecting it the wrong way. If the plug fits into a connector, then it may be connected there.
Embracing Modularity
- The Dioramo Lighting System is Never Obsolete.
- Only get the parts you want, to build exactly what you need.
- Grow your Lighting System as your project expands.
Specifications:
| Product Category: | Cable Assemblies |
| Cable Type: | Power Extensions |
| Socket: (DC Input) |
5.5x2.1mm DC Jack / Female Socket (Anode (+) on Inside Pin) |
| Connector: (DC Output) |
5.5x2.1mm DC Barrel Plug (Anode (+) on Inside Pin) |
| Cord: | 9 Inches / 22 AWG |
| Rated Voltage: | 12 V DC (volts) |
| Rated Load: | 3000 mA (milliampere) 3 A (ampere) |
Products Compatible with this Power Socket and Connector Plug:
#40103 - 12V Plug-in AC/DC Power Supply
#40201 - 12V AA Battery Holder with DC Connector
#40209 - 9V Battery Holder with DC Connector
#40302 - Power Jack Female Wire Adapter (Screws)
#40304 - Power Jack Female Wire Adapter (Push Connect)
#30142 - 1 to 2 Power Splitter Adapter Cable
#30143 - 1 to 3 Power Splitter Adapter Cable
#30144 - 1 to 4 Power Splitter Adapter Cable
#30145 - 1 to 5 Power Splitter Adapter Cable
#30123 - 3ft. Power Extension Cable
#30126 - 6ft. Power Extension Cable
#30122 - 12ft. Power Extension Cable
All Types - Dioramo Lighting System Compatible Products
Important:
The Dioramo Lighting System is designed to be both an Easy-Peasy Plug-and-Play Solution and a Customizable System for DIY Builders. Our DIY Adapters and Cables allow for both approaches.
DIY Connections, however, are done at your own risk. Faulty DIY connections resulting in a short circuit may damage the device's electronics.
