0603 Cool-White SMD LED. 3V Sticky 1.5mm Strip Light. 1m.
Original price
$9.93
-
Original price
$9.93
Original price
$9.93
$9.93
-
$9.93
Current price
$9.93
Dioramo Scale Modeling
#00342

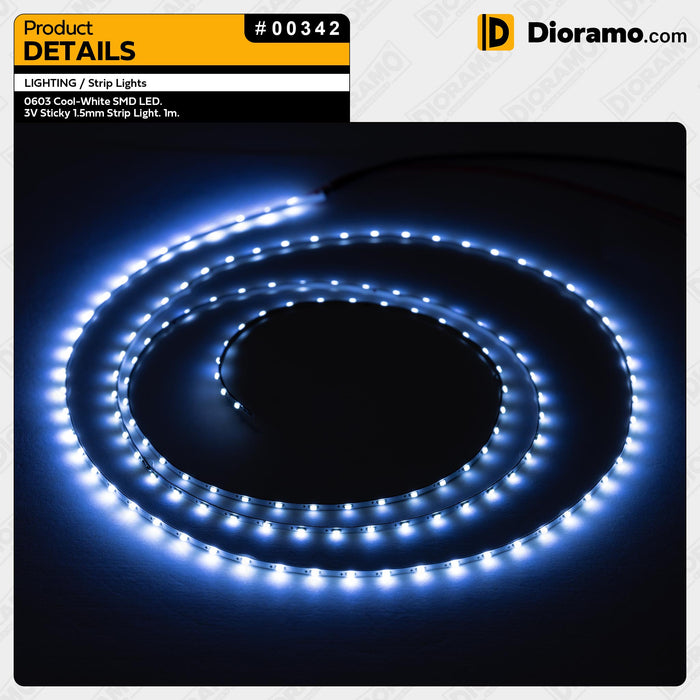

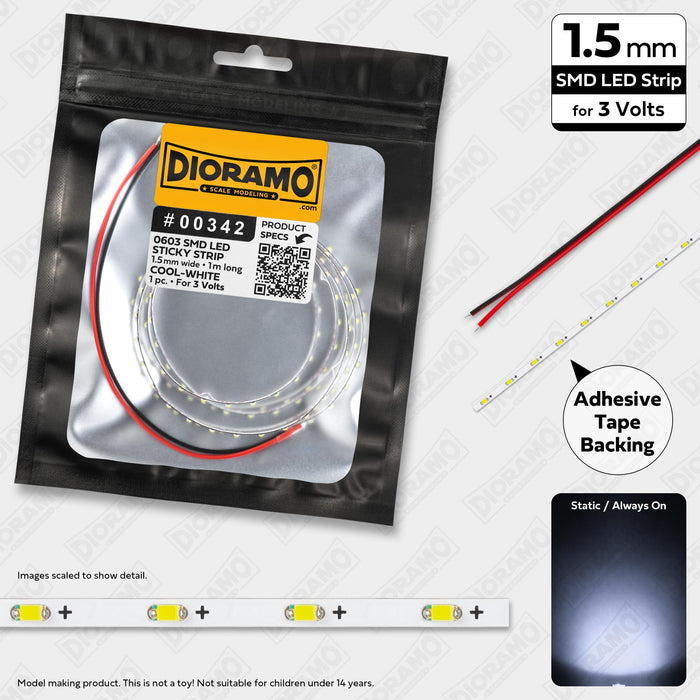

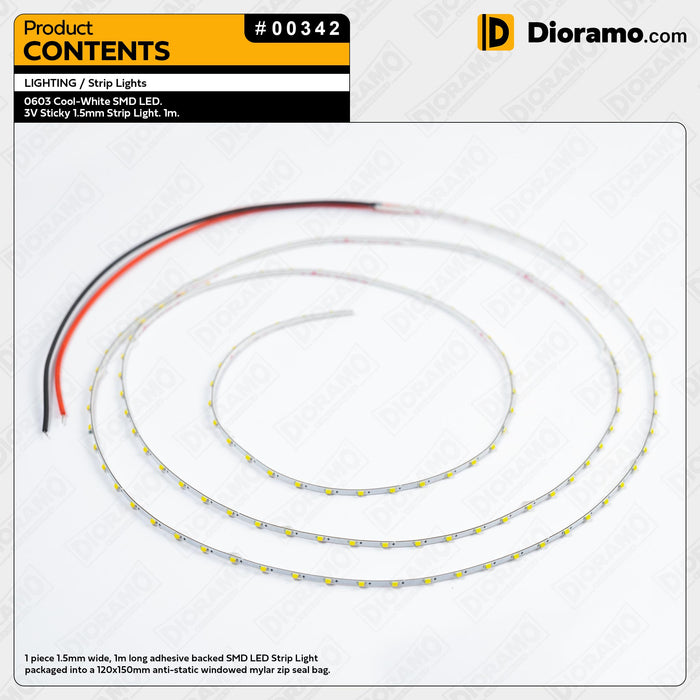

A Cool-White 1.5mm wide SMD LED Strip Light for 3 Volts.
A Micro LED Strip Light for specialized Scale Model Lighting applications:
- Cool /Cold White (7000 to 9000 K) Light Color.
- 1.5mm wide.
- 1m (3.28 ft.) long.
- Cuttable every 7mm.
- Soldering Pads every 0.5m.
- Adhesive Tape Backing (peel-and-stick).
Ready to Install LED Strip Light Perfect for Customizing Lighting in your Hobbies, Diorama Scenery, Model Train Layouts, DIY Projects, Crafts, Architectural Displays, Toys, Diecast Cars, RC, Dollhouses, Miniature Light Fixtures, Arduino Builds, Electronics Project, Plastic Kits, Legos, Toy Minis, Costumes, 3D Prints, Christmas Village, Holiday Decorations, and more!
Notes:
- This LED Strip Light requires 3 Volts with constant or limited current to operate.
It is important to limit the current flowing into a 3V LED Strip Light that does not have onboard resistors. This is typically done by powering the strip with a 3V constant-current LED driver or batteries that prevent thermal runaway. - 3V LED Strip Lights that do not have onboard resistors will be brighter at the start of the strip.

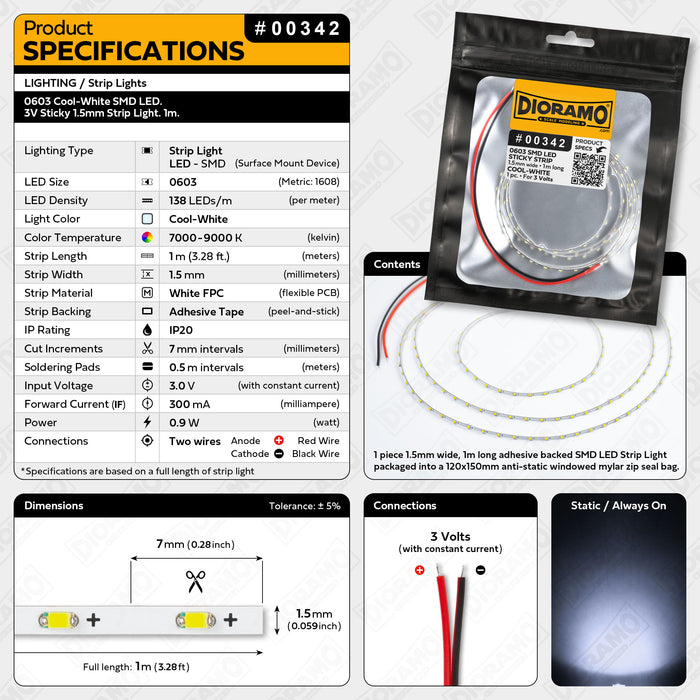

Specifications:
| Lighting Category: | Strip Lights |
| Lighting Type: | Strip Light LED - SMD (surface mount device) |
| LED Size: | 0603 (metric: 1608) |
| LED Dimensions: | 0.06 in. × 0.03 in. × 0.023 in. 1.6 mm x 0.8 mm x 0.7 mm |
| LED Density: | 138 LEDs /m (per meter) |
| Light Color: | Cool-White |
| Color Temperature: | 7000-9000 K (kelvin) |
| Strip Length: | 1 m (meter) 3.28 ft. (feet) |
| Strip Width: | 1.5 mm (millimeters) |
| Strip Material: | White FPC (flexible printed circuit board) |
| Strip Backing: | Adhesive Tape (peel-and-stick) |
| IP Rating: | IP20 (dry environments) |
| Light Effect: | Static / Always On |
| Other Names: | LED Tape Lights LED Ribbon Lights Flexible LED Strips Linear LED Light Sticky Light Strip |
| Supply Voltage: | 3 V (volts) with Constant / Limited Current |
| Forward Current (IF): | 300 mA (milliampere) |
| Power: | 0.9 W (watt) |
| Connections: | Two Wires: Anode (+) Red Wire Cathode (-) Black Wire |
* Specifications are based on a full length of strip light.
Light Colors available for the 1.5mm wide SMD LED Strip Light for 3 Volts:
