0402 Green SMD LED. 9-12 Volts Easy Prewired 2ft. 2 pcs.
Dioramo Scale Modeling # 10284

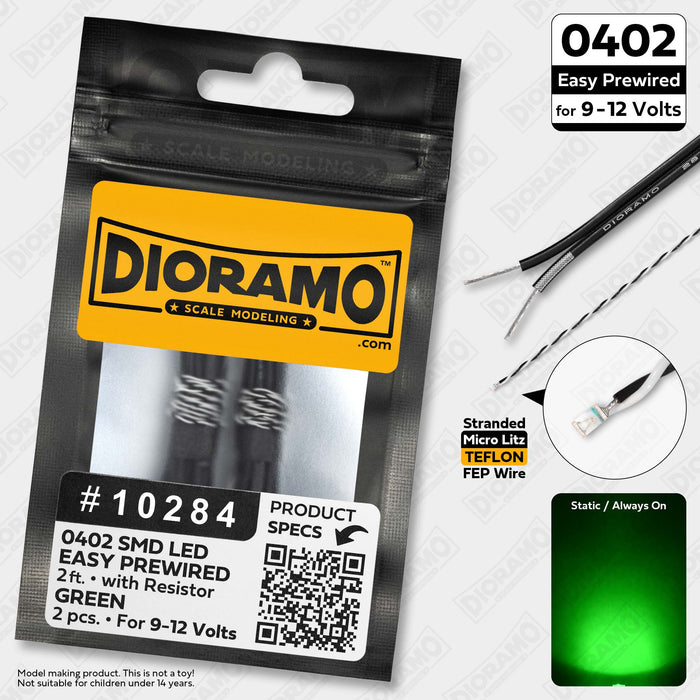

2 Pieces of Easy Pre-wired Green 0402 SMD Mini LED Lights, ready for 9 to 12 Volts.
- A Tiny Green Light Color 0402 SMD LED Component (#10204).
- Soldered and Wired with an in-line 510R current-limiting Resistor (#49085) using 1-foot of our Ultra-Fine 36 AWG Stranded Micro Litz Teflon FEP Twisted Wires (Black #36061 & White #36062) followed by an additional foot of our Premium Ultra-Flexible Black 28 AWG Soft Silicone 2P Ribbon Flat Cable (#32021).
- Ending with Easy to Connect, 8mm Stripped and Pre-soldered Tips.
Perfect for Quick Custom LED Lighting Installations in Small Scale Models, Miniatures, Dioramas, and DIY Hobby Projects.
Commonly used to Add Effects or Set the Mood when Customizing Miniature Hobbies, Light Fixtures in Diorama Scenery and Buildings, Model Train Layouts, Toys, Plastic Kits, Diecast Cars, RC, Crafts, Dollhouses, Costumes, Toy Minis, Decorations, and more!
These LEDs require up to 12 Volts to operate.
Specifications:
| Lighting Category: | Easy Prewired |
| Lighting Type: | LED - SMD (surface mount device) |
| LED Size: | 0402 (metric: 1005) |
| LED Dimensions: |
0.04 in. × 0.02 in. × 0.028 in. 1.0 mm x 0.5 mm x 0.7 mm |
| Light Color: | Green |
| Wavelength: |
525-527 nm (nanometers) |
| Brightness: | 200-250 mcd (millicandela) |
| Lens Color: |
None / Clear |
| Lens Transparency: | Transparent |
| Lens Shape: | Flat (side view) |
| Lens Surface: | Rectangle (top view) |
| Viewing Angle: | 120° (degrees) |
| Light Effect: | Static / Always On |
| Other Names: | Micro LED, Chip (aka) |
| Supply Voltage: | 9-12 V (volts) |
| Current Limiting: | 510 R (ohms) Resistor Prewired In-line |
| Power: | 0.06 W (watt) |
| Connections: | Two Wires: Anode (+) White Mark Cathode (-) Black Wire |
* Specifications are based on the LED component's optimal performance.
Product Variations using this Green 0402 SMD LED Component:
#10204 - Components Only
#00204 - Fine Prewired (No Resistor Added)
#00224 - Easy Prewired (No Resistor Added)
#10224 - Easy Prewired for 3 Volts
#10244 - Easy Prewired for 5-6 Volts
#10284 - Easy Prewired for 9-12 Volts
#10264 - Prewired for Dioramo's Plug & Play Lighting System
