Dioramo DIY Power Distribution Block with Easy Push Spring Terminals
Dioramo Scale Modeling
DIY Power Distribution Block with Easy Push Spring Connector Terminals and a DC Power Jack Input / Output
Electrical Busbar with 2x 12-terminal Easy-to-Connect Push Spring Wire Connectors, plus a DC Power Jack Input or Output.
- Accepts 14 to 36 AWG Wires.
- Load up to 3A (3000mA), up to 24V.
- Features the popular 5.5x2.1mm DC Jack, which is compatible with the Dioramo Lighting System.
- Includes Mounting Screws (#55330). An optional Die Cut 3M VHB Double-sided Adhesive Pad for screwless mounting is also available (#55201).
Perfect for Expanding and Distributing DIY Electrical Power in Model Railroad layouts and Custom Wiring LED Lighting in Scale Models, Dioramas, Hobby Projects, Crafts, Architectural Displays, Toys, Diecast Cars, RC, Dollhouses, Miniature Light Fixtures, Plastic Kits, Legos, Toy Minis, Costumes, 3D Prints, Christmas Village, Holiday Decorations, and more!
Notes:
- This Power Distribution Block does not convert electricity. Your Input Voltage will be distributed to all terminals.
- It is not required to utilize the DC Power Jack. You may only utilize the push spring connector terminals. All positive terminals are connected, and all negative terminals are connected.

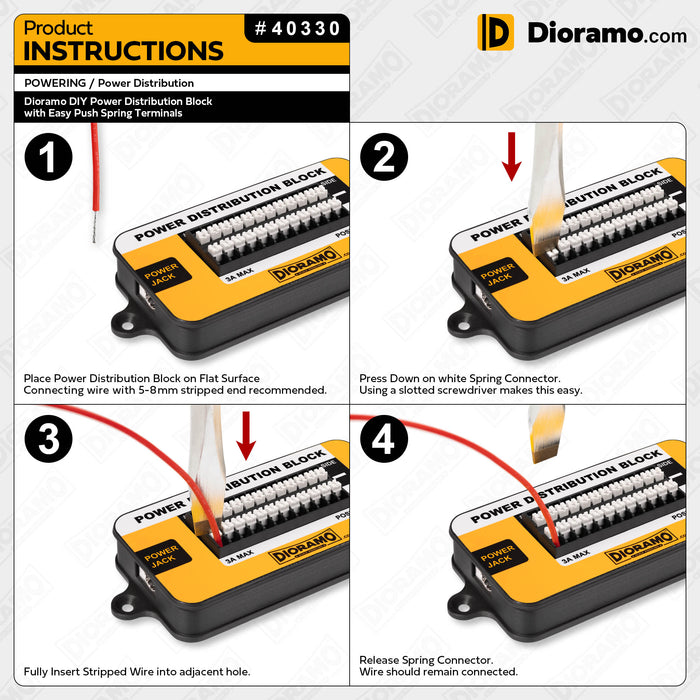

- To install a wire, push down on a white terminal head (preferably with a screwdriver) and fully insert the wire into the adjacent hole.
Embracing Modularity
- The Dioramo Lighting System is Never Obsolete.
- Only get the parts you want, to build exactly what you need.
- Grow your Lighting System as your project expands.
Specifications:
| Dimensions: (incl. Mounting Wings) |
3.79 in. × 1.6 in. × 0.55 in. 96.35 mm x 40.5 mm x 14.0 mm |
| Maximum Operating Voltage: | up to 24 V (volts) |
| Maximum Device Current: | 3000 mA (milliampere) 3 A (ampere) |
| DC Jack: | DC Barrell Connector. Size: 5.5mm x 2.1mm (Anode (+) on the inside pin) |
| Wire Terminals: | Push Spring Connectors accepting 14 to 36 AWG Wires |
Compatible Products:
#40103 - Dioramo 12V Power Supply
Wiring - Dioramo Electrical Wire
All Types - Dioramo Lighting System Compatible Products
Important:
The Dioramo Lighting System is designed to be both an Easy-Peasy Plug-and-Play Solution and a Customizable System for DIY Builders. Our DIY Adapters and Cables allow for both approaches.
DIY Connections, however, are done at your own risk. Faulty DIY connections resulting in a short circuit may damage the module's electronics.
