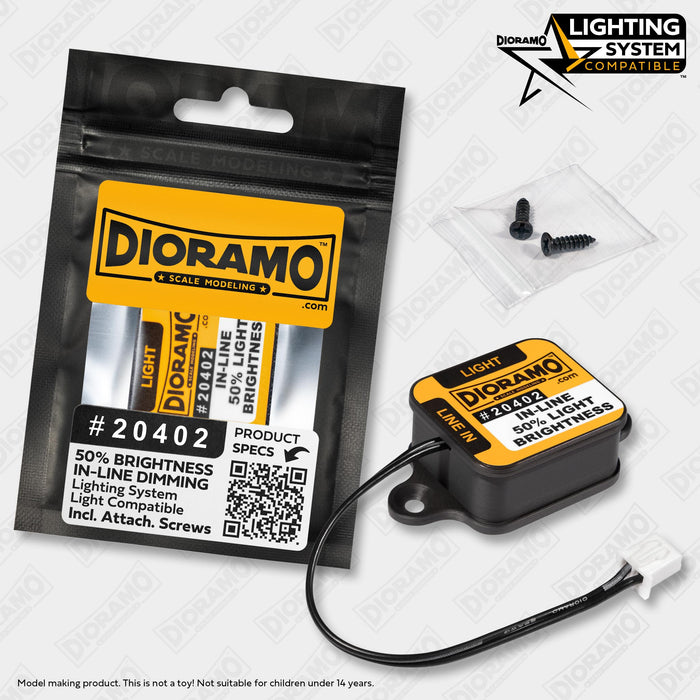

50% Light Brightness. Dioramo Lighting System In-line Dimming Adapter.
A 50% Brightness In-line Light Dimming Adapter for Dioramo Lighting System Compatible LED Lights.
- Reduces the intensity of a particular Light by a Set Percentage without needing a separate variable Dimmer.
- This adapter has a single Light Port output designed to dim one light by approximately 50%.
- An optional In-line 1-4 Light Splitter (#20201) may be connected to this adapter to dim up to 4 Lights. The brightness will slightly decrease as more lights are connected.
- The Dioramo Lighting System has a Fail-Safe design. You can't cause harm by accidentally connecting parts the wrong way. If the plug fits into a connector, then it may be connected there.
- Includes Mounting Screws (#55330). An optional Die Cut 3M VHB Double-sided Adhesive Pad for screwless mounting is also available (#55202).
Perfect for dedicated creative control over certain LEDs when Lighting your Hobbies, Diorama Scenery, Model Train Layouts, DIY Projects, Crafts, Architectural Displays, Toys, Diecast Cars, RC, Dollhouses, Miniature Light Fixtures, Plastic Kits, Legos, Toy Minis, Costumes, 3D Prints, Christmas Village, Holiday Decorations, and more!
Notes:
- For Full-Range (0-100% Brightness) Variable Dimming with 10 Light Ports, consider our Buttery-smooth Dimmer (#20102).
- The "Product Specifications" and "Lighting System Catalog" PDFs offer additional system and technical information.
Embracing Modularity
- The Dioramo Lighting System is Never Obsolete.
- Only get the parts you want, to build exactly what you need.
- Grow your Lighting System as your project expands.
Specifications:
| Dimensions: (incl. Mounting Wings) |
1.82 in. × 1.0 in. × 0.55 in. 46.25 mm x 25.5 mm x 14.0 mm |
| Operating Voltage: | 0-12 V (volts) |
| Maximum Device Current: | 80 mA (milliampere), or 4 Dioramo Lighting System Compatible Lights |
| Line In: | JST XH-A2 Plug (Anode (+) on Pin 1 / White Mark) |
| Light Port: | JST XH-A2 Connectors (Anode (+) on Pin 1) |
Available In-line Light Dimming Adapters:
#20401 - 25% Light Brightness
#20402 - 50% Light Brightness
#20403 - 75% Light Brightness
All Types - Dioramo Lighting System Compatible Products
Important:
The Dioramo Lighting System is designed to be both an Easy-Peasy Plug-and-Play Solution and a Customizable System for DIY Builders. Our DIY Adapters and Cables allow for both approaches.
DIY Connections, however, are done at your own risk. Faulty DIY connections resulting in a short circuit may damage the module's electronics.
