32 AWG Ultra-Fine Black Micro Litz Stranded Electrical Wire 200 ft.
Original price
$18.43
-
Original price
$18.43
Original price
$18.43
$18.43
-
$18.43
Current price
$18.43

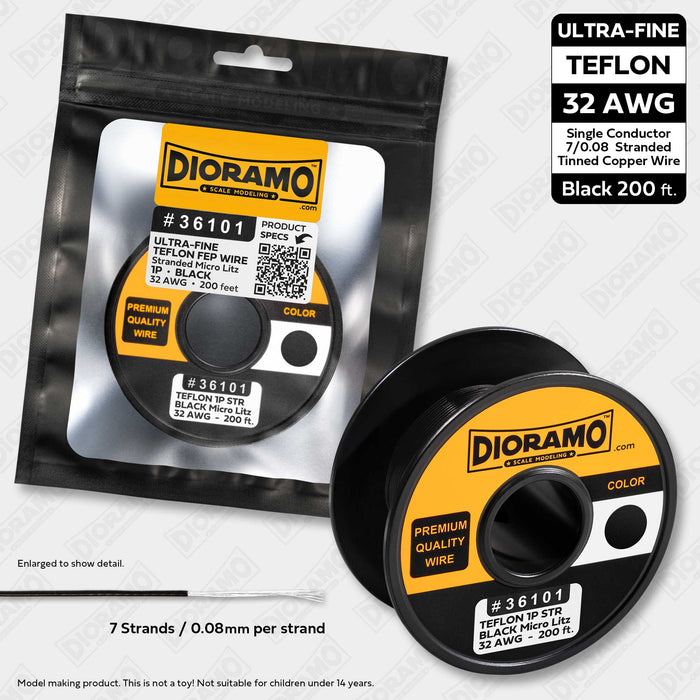

Dioramo Scale Modeling # 36101. Premium 32 AWG Ultra Fine Black Teflon Stranded 1P Single Conductor Electronic Micro Litz Hook-Up Wire. 200 ft Length Spool. High Quality FEP Insulation on Tinned Copper Strands. Perfect for Tiny Wiring Installations in Scale Models, Dioramas, Hobbies, Electronics, LEDs, and DIY Projects.
Specifications:
| Standard: | UL10064 |
| Wire Type: | Stranded Tinned Copper Wire |
| Wire Size: | 32 AWG |
| Insulation Color: | Black |
| Length: | 200 ft. Spool |
| Insulation Type: | Teflon FEP (Fluorinated ethylene propylene) |
| Insulation Thickness: | 0.07 mm |
| Conductor Specification: | Single Conductor, 7x 0.08mm Strands (7/0.08) |
| Conductor Outer Diameter: | 0.24 mm |
| Conductor Resistance: | 613 Ω/km (Max) |
| Insulation Resistance: | 100 MΩ.km (Min) |
| Dielectric Strength (AC): | 500 V / 1 Min |
| Overall Diameter: | 0.38 mm (0.015 inch) |
| Rated Voltage: | 30 Volts |
| Temperature Rating: | 105°C |
