40 AWG Ultra-Fine Black Micro Litz Stranded Electrical Wire 100 ft.
Original price
$19.97
-
Original price
$19.97
Original price
$19.97
$19.97
-
$19.97
Current price
$19.97

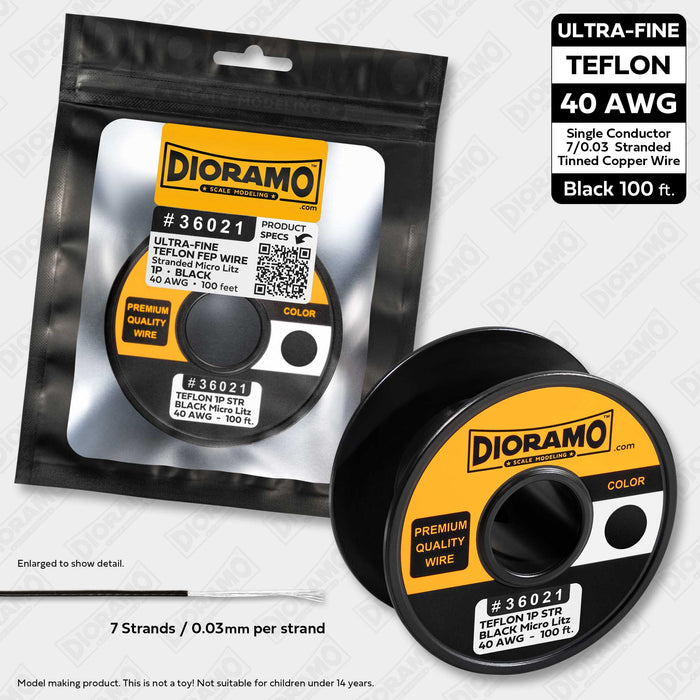

Dioramo Scale Modeling # 36021. Premium 40 AWG Ultra Fine Black Teflon Stranded 1P Single Conductor Electronic Micro Litz Hook-Up Wire. 100 ft Length Spool. High Quality FEP Insulation on Tinned Copper Strands. Perfect for Tiny Wiring Installations in Scale Models, Dioramas, Hobbies, Electronics, LEDs, and DIY Projects.
Specifications:
| Standard: | UL10064 |
| Wire Type: | Stranded Tinned Copper Wire |
| Wire Size: | 40 AWG |
| Insulation Color: | Black |
| Length: | 100 ft. Spool |
| Insulation Type: | Teflon FEP (Fluorinated ethylene propylene) |
| Insulation Thickness: | 0.065 mm |
| Conductor Specification: | Single Conductor, 7x 0.03mm Strands (7/0.03) |
| Conductor Outer Diameter: | 0.09 mm |
| Conductor Resistance: | 5000 Ω/km (Max) |
| Insulation Resistance: | 100 MΩ.km (Min) |
| Dielectric Strength (AC): | 300 V / 1 Min |
| Overall Diameter: | 0.22 mm (0.009 inch) |
| Rated Voltage: | 30 Volts |
| Temperature Rating: | 105°C |
