DIY 3V LED Light Adapter for Lighting System - Push Spring Connectors

Add your custom or third-party 2-3V LED Lights and Fixtures to the Dioramo Lighting System:

• No need to worry about Soldering, easily connect your Light's Wires to the Push Spring Connectors.
• Load up to 300mA, that's 15 Regular 20mA 3V LEDs!
• No need to worry about Resistors, it features a built-in 1-watt Current-Limiting Resistor Array.
• Includes a 1ft. DIY Light Cable (#28091) to Plug this Light Adapter into any Dioramo Lighting System Light Port.
• Includes Mounting Screws (#55330).

Perfect for DIY Connections to the Dioramo Lighting System for your Custom 2 or 3 Volt LED Lights in your Hobbies, Diorama Scenery, Model Train Layouts, DIY Projects, Crafts, Architectural Displays, Toys, Diecast Cars, RC, Dollhouses, Miniature Light Fixtures, Arduino Builds, Electronics Project, Plastic Kits, Legos, Toy Minis, Costumes, 3D Prints, Christmas Village, Holiday Decorations, and more!

Important:

1. Dioramo Lighting System Products are plug-and-play with a fail-safe design. Its successful operation relies on connecting compatible products with restrictive connectors, preventing incorrect polarity or short circuits.
2. Wiring DIY (do-it-yourself) Connections (using this adapter) to the Dioramo Lighting System products negates these safety protections and is done at your own risk. Faulty DIY connections resulting in a short circuit may damage electronic circuits. Dioramo products damaged as a result of a short circuit from a DIY connection are not eligible for replacement.
3. Tip: Connect your LEDs and DIY Light Cables to this Adapter before connecting it to the Dioramo Lighting System. This will help prevent open wire ends from touching one another, causing a short circuit.

Notes:

1. LED Brightness will slightly decrease as the number of LEDs connected to the adapter increases.

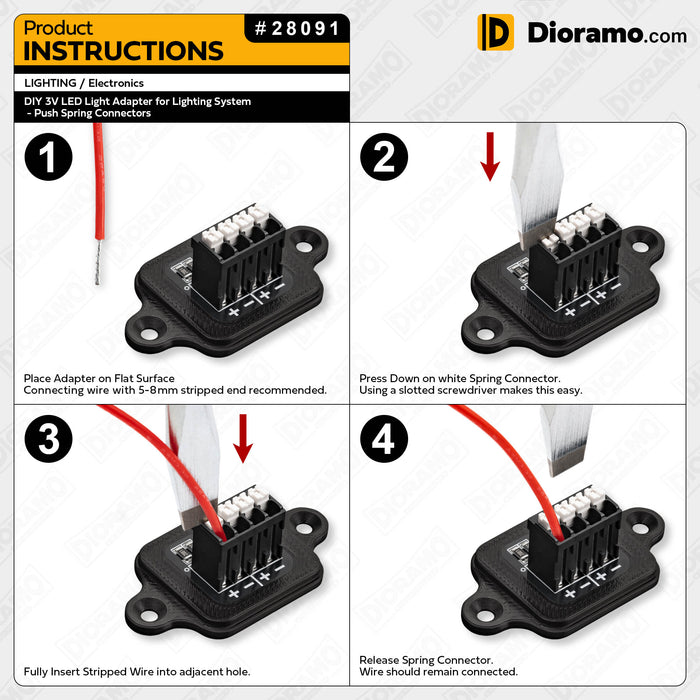

2. To connect your wires, push down on the white spring connectors using a screwdriver and insert the wire ends. See the Specifications PDF for Technical Information and Wiring Diagram.
3. White Wire is on Pin 1 and is the Positive Terminal.
   Black Wire is on Pin 2 and is the Negative Terminal.
4. Compatible with our extensive selection of LED Components, and Easy Prewired (without resistors) LED Lights.

Embracing Modularity

• The Dioramo Lighting System is Never Obsolete.
• Only get the parts you want, to build exactly what you need.
• Grow your Lighting System as your project expands.

Specifications:

DIY Cables and Adapters Compatible with the Dioramo Lighting System:

#30191 - 1ft. DIY Light Cables
#30192 - 2ft. DIY Light Cables
#30195 - 9-inch DIY Power Cables

#28091 - DIY Light Adapter (with Push Spring Wire Connectors)
#28092 - DIY Light Adapter (with JST Plug Cables)

All Types - Dioramo Lighting System Compatible Products
