New Products: DIY 3V LED Light Adapters for Dioramo Lighting System

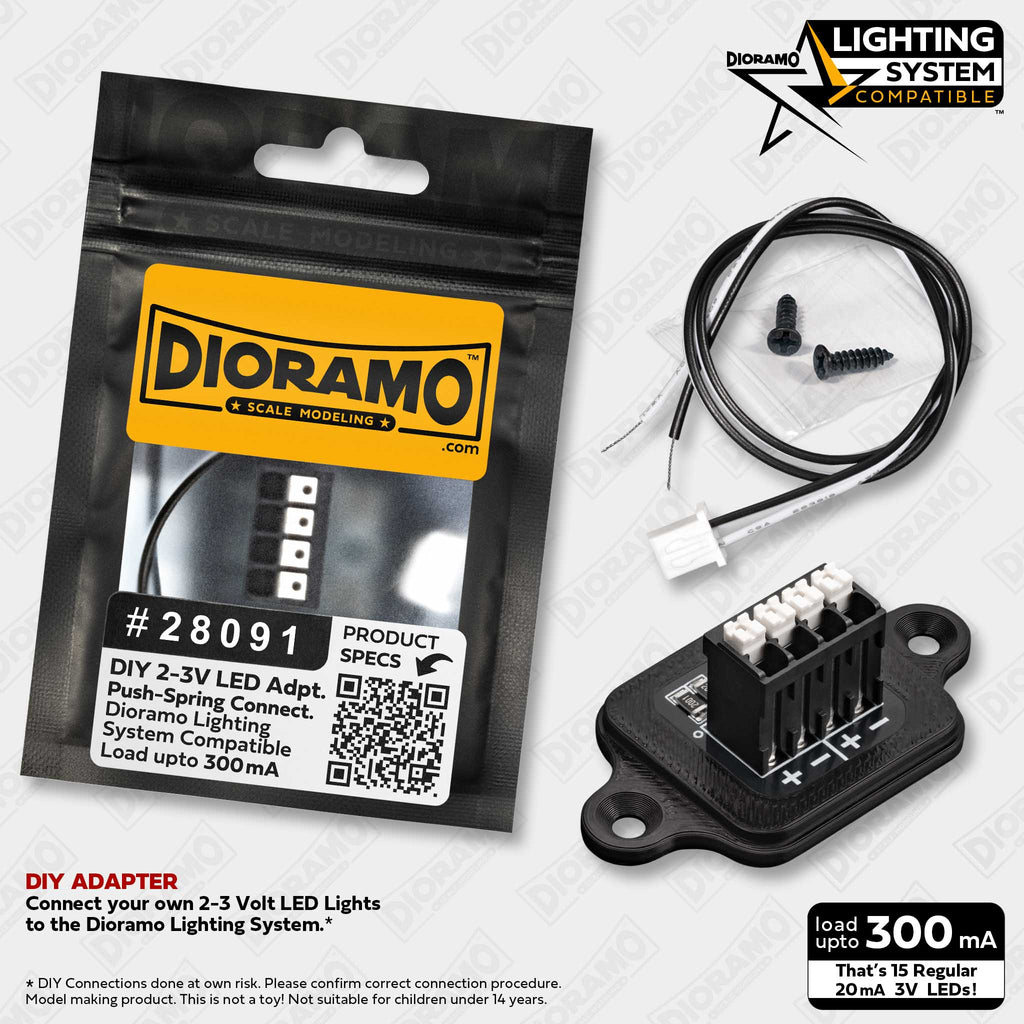

Dioramo responded to customers' requests and launched products #28091 and #28092, two exciting new Do-It-Yourself LED Adapters compatible with the Dioramo Lighting System.

Connect your own 2-3V LED Lights, Components, and Fixtures into Quick Push-Spring Connectors (#28091) or via a DIY Light Cable (#28092) to Power and Control them using the popular 12V Lighting System Power Supply and Modules.

Each Adapter features a built-in 1-watt Current-Limiting Resistor Array with a load rating of up to 300mA at 12 Volts, so there's no need to worry about Soldering or Resistors!

This means you can connect up to 15 regular 20mA 3V LEDs using a single adapter.

If you have 3V LED lights from another system that also utilizes JST-XH Connectors, then you may plug them directly into the Connector on Adapter #28092 and utilize an optional In-line Light Splitter (#20201) to connect additional lights with JST-XH Plugs.

Note: DIY Connections to the Dioramo Lighting System are performed at your own risk. Please refer to the Products' Specifications PDF for the correct procedure and limitations.
